Official Raspberry Pi Pico 2 W (RP2350) with Headers and Cable
Product Details
Overview

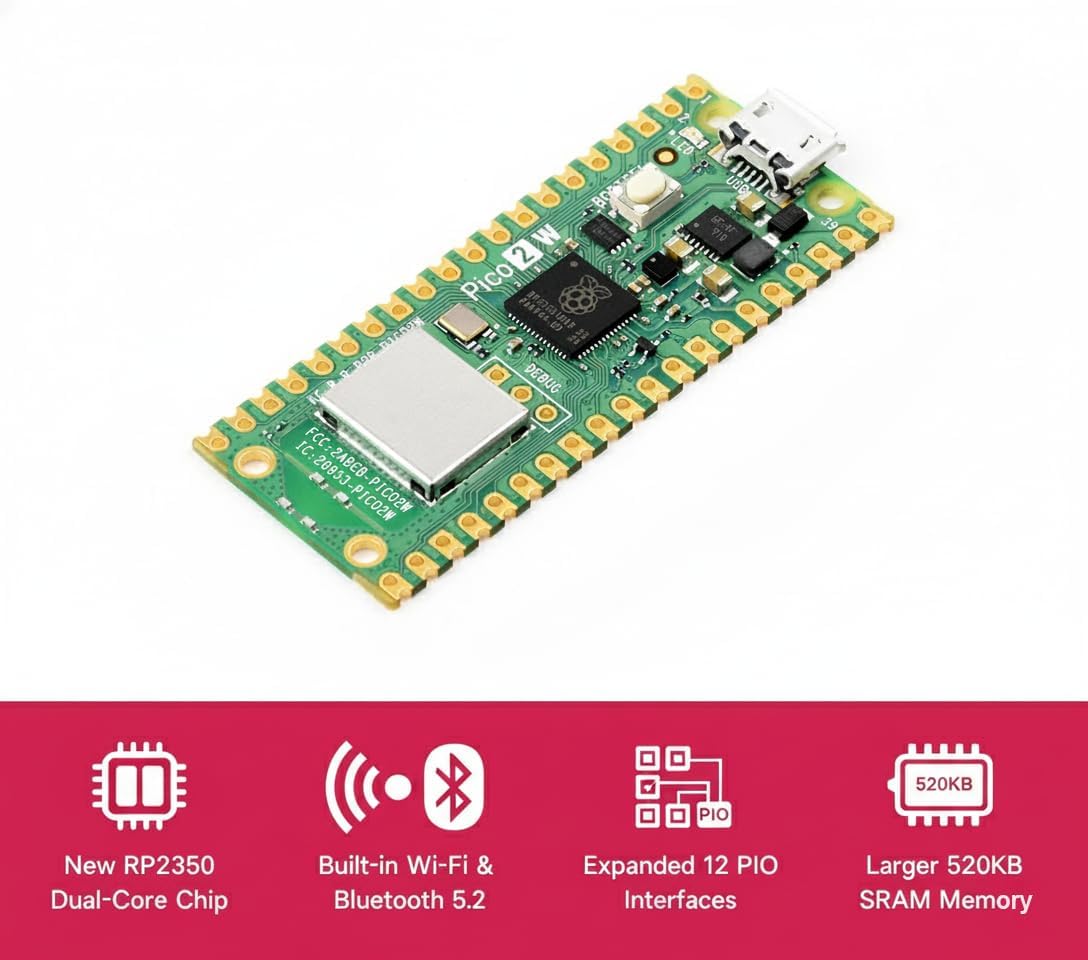

The Raspberry Pi Pico 2 W is the wireless member of the second-generation Pico family, built on the new RP2350 microcontroller. Its dual Arm Cortex-M33 cores run at up to 150 MHz (the chip can also be configured to run Hazard3 RISC-V cores), delivering a substantial step up in performance and security over the original RP2040.
Wireless is what sets it apart: an on-board Infineon CYW43439 module with a licensed antenna provides 2.4 GHz 802.11n Wi-Fi with WPA3 and Bluetooth 5.2 (LE and Classic) — ideal for battery-powered sensors, remote telemetry, home automation nodes and wireless update workflows. With 520 KB of SRAM and 4 MB of QSPI flash, there is plenty of headroom for MicroPython, CircuitPython or C/C++ firmware.
This bundle ships ready to prototype: the board, a full set of solderable 40-pin headers for breadboard or carrier-board mounting, and a micro-USB cable for programming and power. It stays fully compatible with the existing Pico software tools, examples and accessories.
Key Features
- RP2350 dual-core, 150 MHz — Dual Arm Cortex-M33 (or optional Hazard3 RISC-V) cores for responsive embedded and real-time work
- Wi-Fi and Bluetooth built in — 2.4 GHz 802.11n with WPA3 plus Bluetooth 5.2 LE and Classic
- Generous memory — 520 KB on-chip SRAM and 4 MB QSPI flash
- Developer-friendly I/O — 26 multifunction GPIO, 4 × 12-bit ADC, multiple UART / SPI / I²C controllers and up to 24 PWM channels
- Programmable I/O — 12 PIO state machines for custom protocols and precise timing
- Headers included — Solder them on for breadboard use, or mount the board directly on a carrier board
- Compact and portable — 21 × 51 mm Pico form factor, micro-USB programming and power, USB 1.1 host / device support
Ideal For
- Wireless IoT prototypes and smart sensors
- Home automation, BLE beacons and remote controllers
- Robotics controllers, motor drivers and custom peripheral interfaces
- Education, workshops and rapid prototyping
Specifications
| Brand | Raspberry Pi |
|---|---|
| Model | Raspberry Pi Pico 2 W |
| Microcontroller | RP2350, dual Arm Cortex-M33 (optional Hazard3 RISC-V) |
| Clock speed | Up to 150 MHz |
| SRAM | 520 KB |
| Flash | 4 MB QSPI |
| Wireless | 2.4 GHz 802.11n Wi-Fi with WPA3, Bluetooth 5.2 (LE & Classic), Infineon CYW43439 |
| GPIO | 26 multifunction pins |
| Analogue inputs | 4 × 12-bit ADC |
| Serial interfaces | UART, SPI and I²C controllers |
| PWM | Up to 24 channels |
| Programmable I/O | 12 PIO state machines |
| USB | Micro-USB, USB 1.1 host and device support |

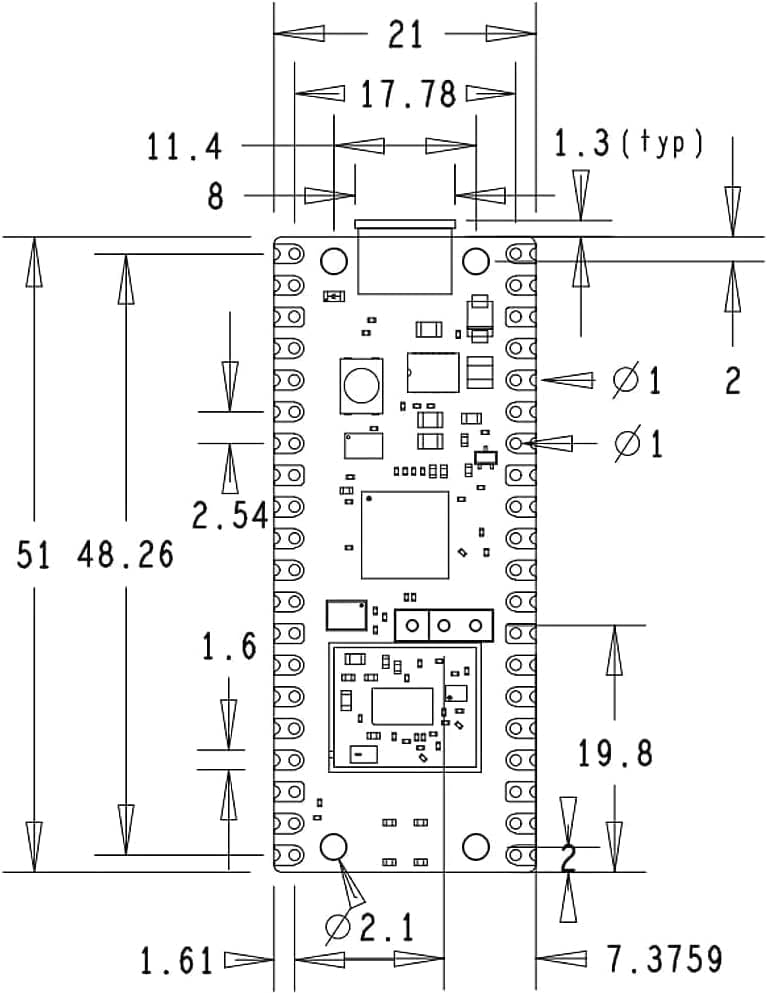

| Board size | 21 × 51 mm |
| Programming | MicroPython, CircuitPython, C/C++ SDK |
| Warranty | 3 months |
What's in the Box
- 1 × Raspberry Pi Pico 2 W (RP2350) board
- 1 × set of 40-pin GPIO headers (un-soldered)

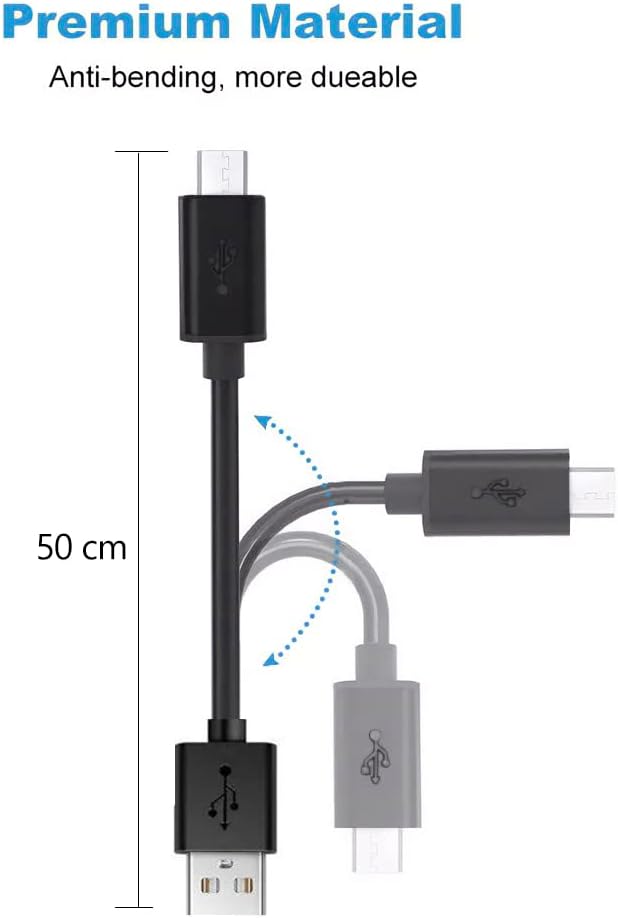

- 1 × micro-USB cable
Official Raspberry Pi Pico 2 W (RP2350) with Headers and Cable
- Official Raspberry Pi Pico 2 W built on the new RP2350
- Dual Arm Cortex-M33 up to 150 MHz with 520 KB SRAM and 4 MB flash
- Wi-Fi with WPA3 and Bluetooth 5.2; headers and micro-USB cable included
