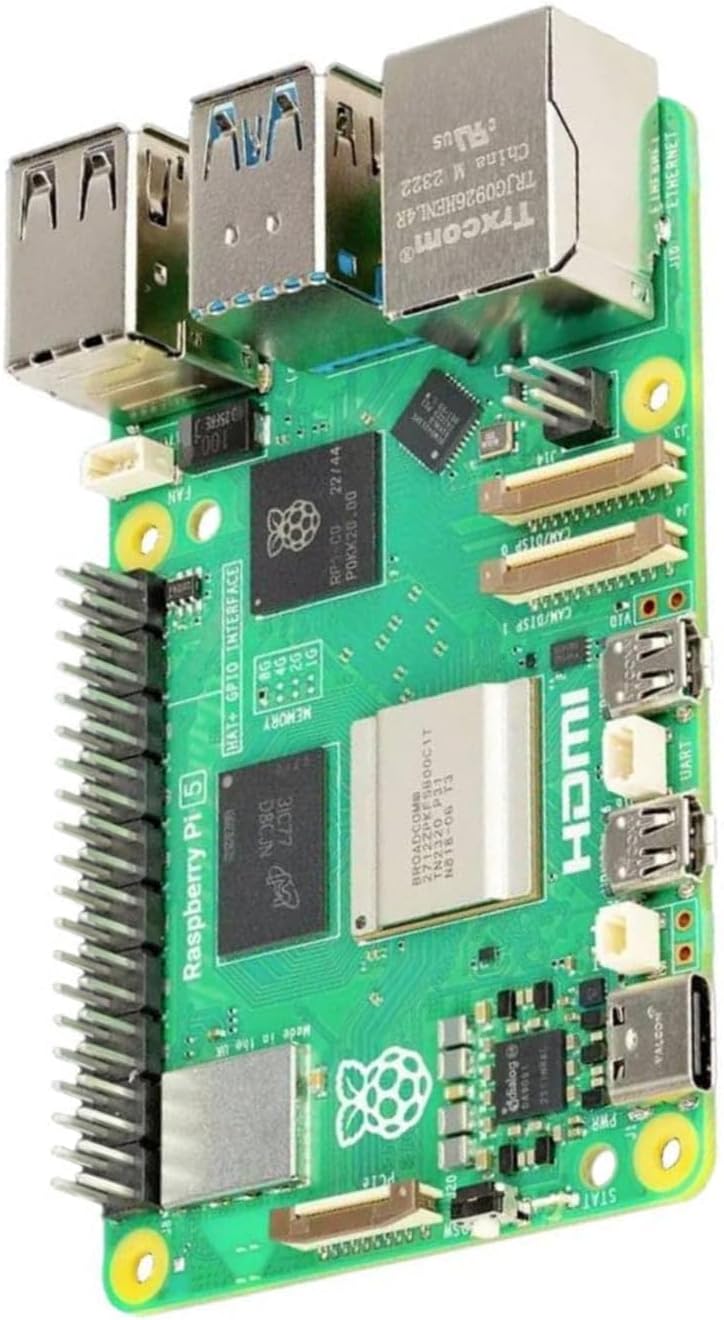

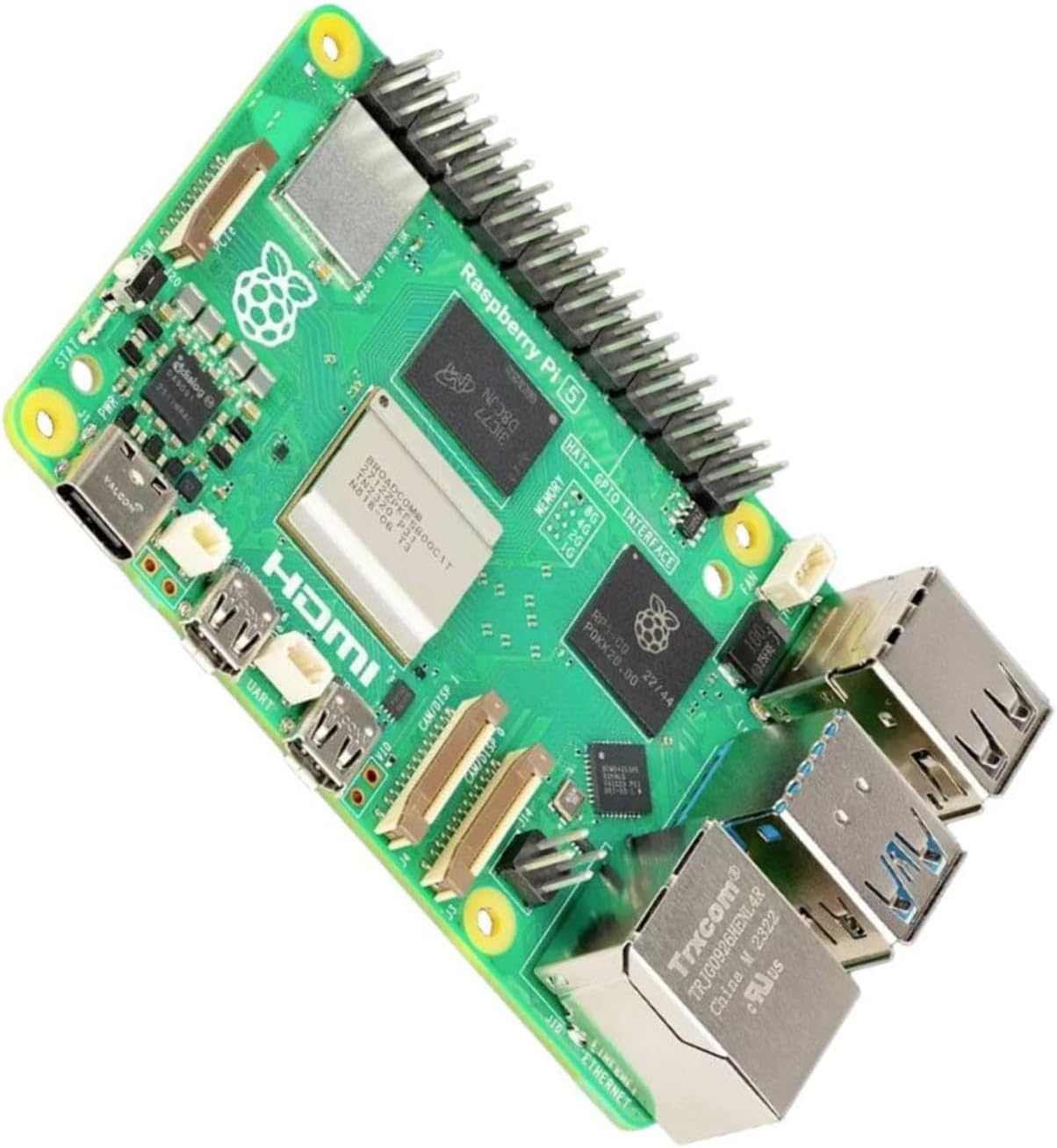

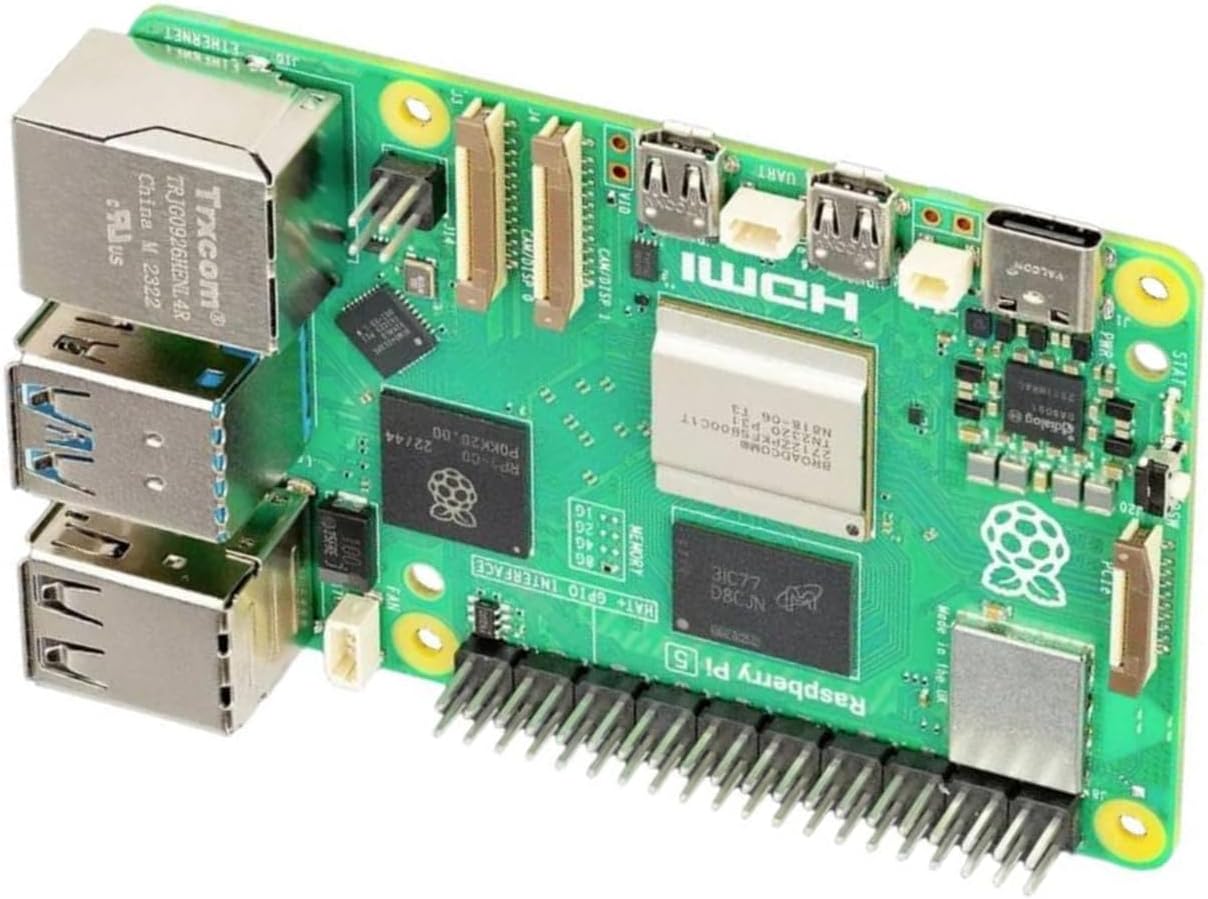

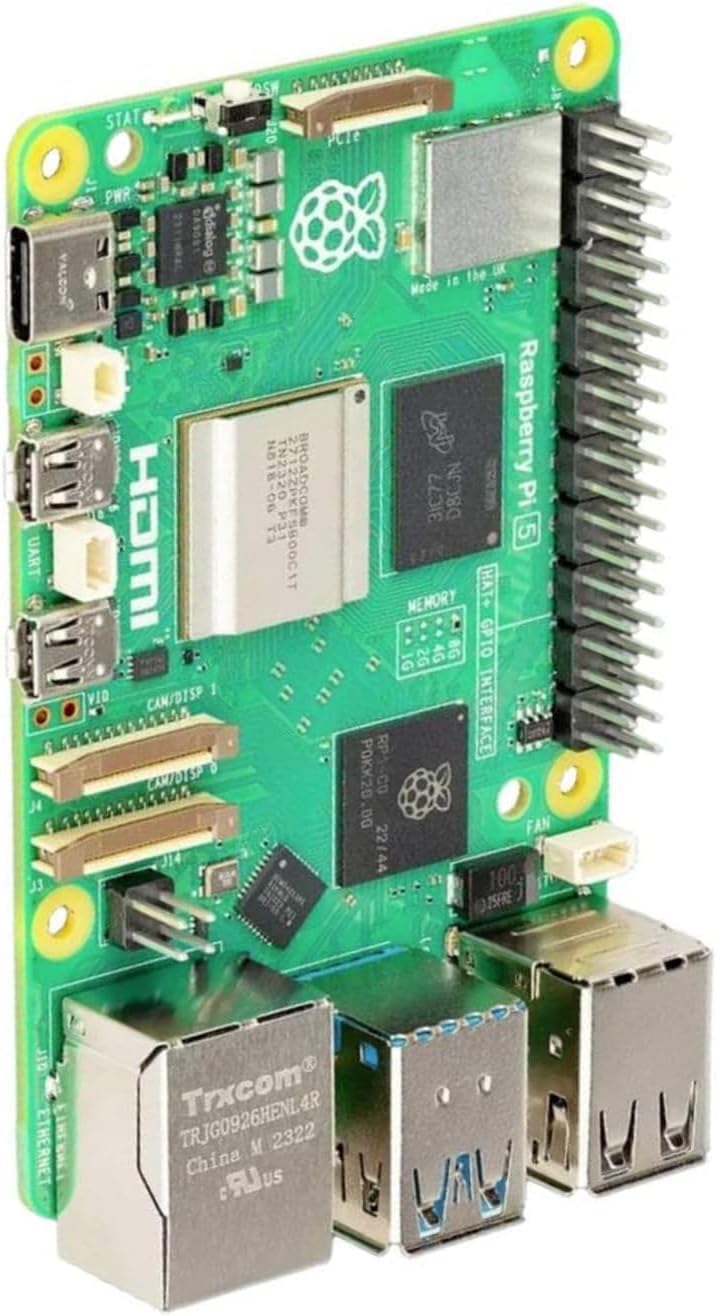

Raspberry Pi 5, 4GB
- Official Raspberry Pi 5 with 4 GB LPDDR4X RAM
- Quad-core Cortex-A76 at 2.4 GHz, around three times the CPU performance of the Pi 4
- Dual 4Kp60 output, 2 x USB 3.0 and a PCIe connector for NVMe storage
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | IOT-PI-54G |
|---|---|
| Category | Raspberry Pi |
| Unit price | $109.95 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
The Raspberry Pi 5 is the fastest board Raspberry Pi has ever shipped. A 2.4 GHz quad-core 64-bit Arm Cortex-A76 CPU (Broadcom BCM2712) delivers roughly three times the CPU performance of the Raspberry Pi 4, paired with a VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2.
Camera, display and USB interfacing are all handled by the RP1 I/O controller — the first piece of Raspberry Pi's own silicon to appear on a flagship board. The power-management IC adds a real-time clock with a connector for a button cell, so the clock keeps running while main power is disconnected. Two four-lane MIPI connectors each accept either a camera or a display, and a PCIe 2.0 interface opens the door to NVMe storage.
This is the 4 GB model — a versatile single-board computer for DIY projects, teaching, media centres, home servers, light desktop use and IoT applications of every kind.
Key Features
- 3× the CPU performance of the Raspberry Pi 4 — 2.4 GHz quad-core 64-bit Arm Cortex-A76, 512 KB L2 per core and 2 MB shared L3 cache
- Memory — 4 GB LPDDR4X-4267 SDRAM
- Graphics — VideoCore VII GPU with OpenGL ES 3.1 and Vulkan 1.2; dual 4Kp60 display output over micro-HDMI
- Wireless — Dual-band 802.11ac Wi-Fi with Bluetooth 5.0 / BLE
- USB — 2 × USB 3.0 running simultaneously at 5 Gbps, plus 2 × USB 2.0
- Fast storage — PCIe 2.0 ×1 FPC connector for NVMe SSDs via an M.2 HAT, and a faster microSD interface with SDR104 support
- New on the Pi 5 — On-board power button, dedicated fan connector and a real-time clock with battery header
Specifications
| Brand | Raspberry Pi |
|---|---|
| Model | Raspberry Pi 5 (4 GB) |
| Processor | Broadcom BCM2712, quad-core Cortex-A76 (ARMv8.2-A) 64-bit |
| Clock speed | 2.4 GHz |
| Cores | 4 |
| Cache | 512 KB L2 per core, 2 MB shared L3 |
| Memory | 4 GB LPDDR4X-4267 SDRAM |
| Graphics | VideoCore VII, OpenGL ES 3.1, Vulkan 1.2 |
| Wireless | Dual-band 802.11ac Wi-Fi, Bluetooth 5.0 / BLE |
| Ethernet | Gigabit Ethernet (PoE+ requires a PoE+ HAT) |
| USB | 2 × USB 3.0 (5 Gbps), 2 × USB 2.0 |
| Display | 2 × micro-HDMI, up to 4Kp60 each |
| Camera / display ports | 2 × 4-lane MIPI connectors, each usable as camera or display |
| PCI Express | PCIe 2.0 ×1 via FPC connector (M.2 HAT required for NVMe) |
| GPIO | Standard 40-pin header |
| Storage | microSD card slot with SDR104 support (card not included) |
| Power input | 5 V / 5 A USB-C Power Delivery recommended (27 W supply) |
| Board size | 85 × 56 mm |
| Operating system | Raspberry Pi OS and other 64-bit Linux distributions |
What's in the Box
- 1 × Raspberry Pi 5 board (4 GB)
Power supply, microSD card, active cooler and case are sold separately. The Raspberry Pi 5 has no 3.5 mm audio jack; use HDMI or a USB audio device for sound.
Where you'll put it to work.
A complete Linux computer the size of a credit card, with GPIO pins for talking to real hardware.
Home servers
Media centres, network storage, ad-blockers and self-hosted services that run around the clock.
Edge AI & vision
Camera projects, object detection and machine-learning experiments close to the sensor.
Robot brains
Run ROS, navigation and high-level logic while microcontrollers handle the motors.
Learning Linux
A safe, inexpensive machine for learning the command line, Python and networking.
