Raspberry Pi 4 Model B, 2GB [SC15184]
Product Details
Overview
The Raspberry Pi 4 Model B (2 GB) brings a major step up in processor speed, multimedia performance, memory and connectivity over the Raspberry Pi 3 Model B+, while keeping the same board footprint and similar power consumption. For everyday desktop use it delivers performance comparable to an entry-level x86 PC.
Key features include a 1.5 GHz quad-core 64-bit Cortex-A72 processor, dual-display output up to 4K through two micro-HDMI ports, hardware video decode at up to 4Kp60, 2 GB of LPDDR4 RAM, dual-band Wi-Fi, Bluetooth 5.0, true Gigabit Ethernet and USB 3.0. The wireless module carries modular compliance certification, which makes the board considerably easier to design into a finished product.
Key Features
- Processor — Broadcom BCM2711, quad-core Cortex-A72 (ARMv8) 64-bit at 1.5 GHz
- Memory — 2 GB LPDDR4-3200 SDRAM
- Wireless — Dual-band 2.4 / 5 GHz 802.11b/g/n/ac Wi-Fi, Bluetooth 5.0 / BLE
- Networking — True Gigabit Ethernet, with PoE support via a separate PoE HAT

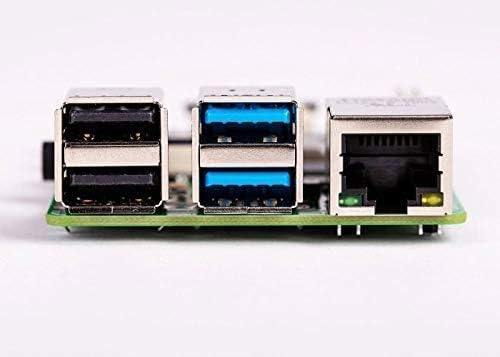

- USB — 2 × USB 3.0 and 2 × USB 2.0 ports
- Display — 2 × micro-HDMI ports supporting up to 4Kp60, plus 2-lane MIPI DSI and CSI connectors
- Expansion — Fully backwards-compatible 40-pin GPIO header
Specifications
| Brand | Raspberry Pi |
|---|---|
| Model | Raspberry Pi 4 Model B |
| Processor | Broadcom BCM2711, quad-core Cortex-A72 64-bit |
| Clock speed | 1.5 GHz |
| Cores | 4 |
| Memory | 2 GB LPDDR4-3200 SDRAM |
| Wireless | 2.4 GHz / 5 GHz 802.11b/g/n/ac, Bluetooth 5.0 / BLE |
| Ethernet | Gigabit Ethernet (PoE requires a PoE HAT) |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Display | 2 × micro-HDMI (up to 4Kp60), MIPI DSI display port |
| Camera | 2-lane MIPI CSI camera port |
| Audio / video | 4-pole stereo audio and composite video jack |
| GPIO | 40-pin header |
| Storage | microSD card slot (card not included) |
| Power input | 5.1 V / 3 A via USB Type-C, or via GPIO header (supply not included) |
| Board size | 85 × 56 mm |
| Operating temperature | 0 °C to 50 °C ambient |
| Operating system | Raspberry Pi OS and other Linux distributions |
What's in the Box
- 1 × Raspberry Pi 4 Model B (2 GB) board
Power supply, microSD card, cables and case are sold separately.
Raspberry Pi 4 Model B, 2GB [SC15184]
- Official Raspberry Pi 4 Model B with 2 GB LPDDR4 RAM
- Quad-core Cortex-A72 at 1.5 GHz with dual 4K micro-HDMI output
- Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0 and USB 3.0
