Pro Micro ATmega32U4 Board, Leonardo Bootloader, USB-C (2-Pack)

Overview

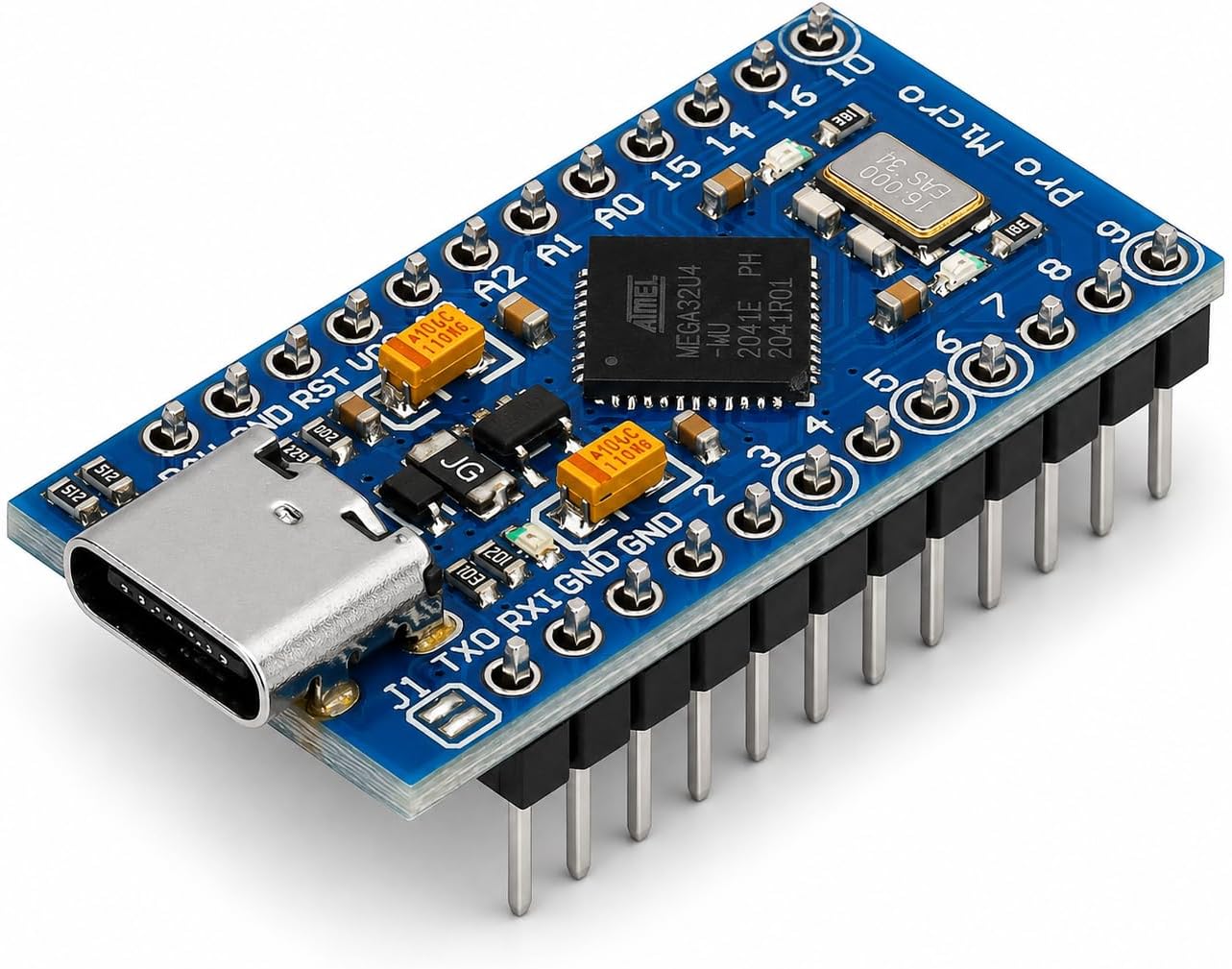

The IoTCrazy Pro Micro is a compact microcontroller board built around the ATmega32U4 and flashed with the Leonardo bootloader. Its defining trick is native USB: the microcontroller talks to your computer directly, so the board can present itself as a keyboard, mouse or other HID device rather than just a serial port.

The 8-bit processor runs at 16 MHz with 32 KB of flash, 2.5 KB of SRAM and 1 KB of EEPROM — ample for macro pads, custom controllers, small robots and sensor projects. Programming and power run over USB Type-C, and the headers arrive pre-soldered.

Supplied as a 2-pack, with four 12-pin headers included.

Key Features

• ATmega32U4 at 16 MHz — 8-bit AVR with plenty of headroom for typical maker projects

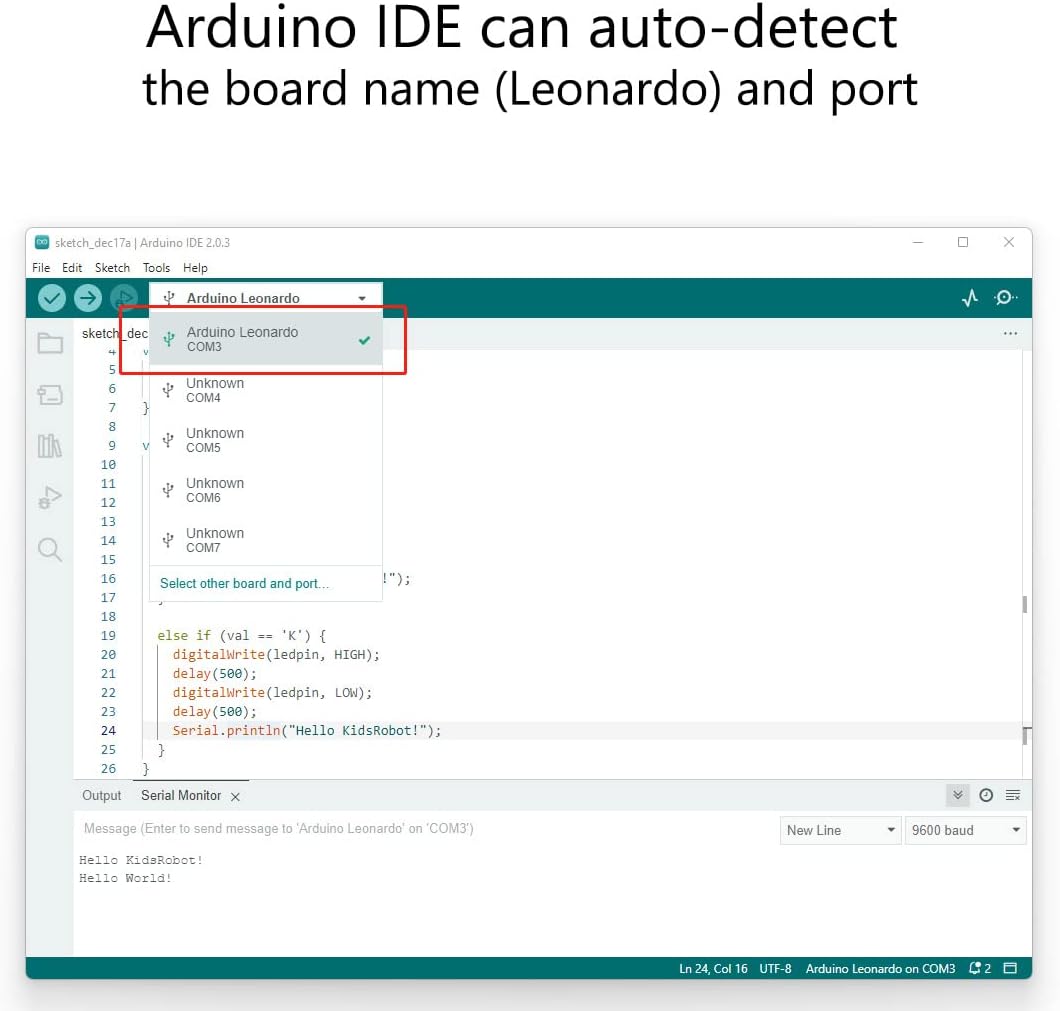

• Native USB with Leonardo bootloader — Emulate a keyboard, mouse or HID device straight from your sketch

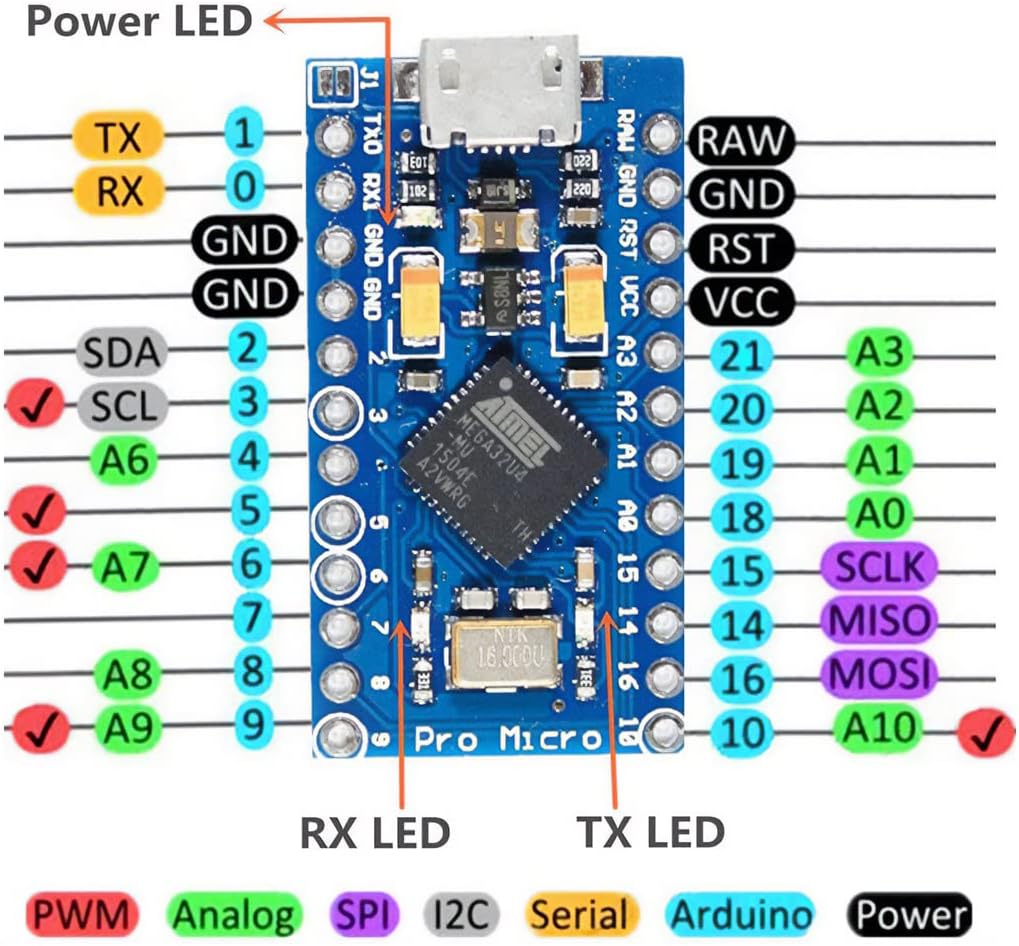

• Practical I/O — 12 digital I/O pins, 5 of which double as analogue inputs, plus PWM outputs
• Hardware serial and I²C — Connect displays, sensors and other peripherals without bit-banging
• On-board regulator — Accepts a range of supply voltages for stable operation
• USB Type-C — Modern reversible connector for programming and power
• 2-pack with headers — Two boards and four 12-pin headers included

Specifications

What's in the Box

• 2 × IoTCrazy Pro Micro ATmega32U4 boards with pre-soldered headers
• 4 × 12-pin headers
