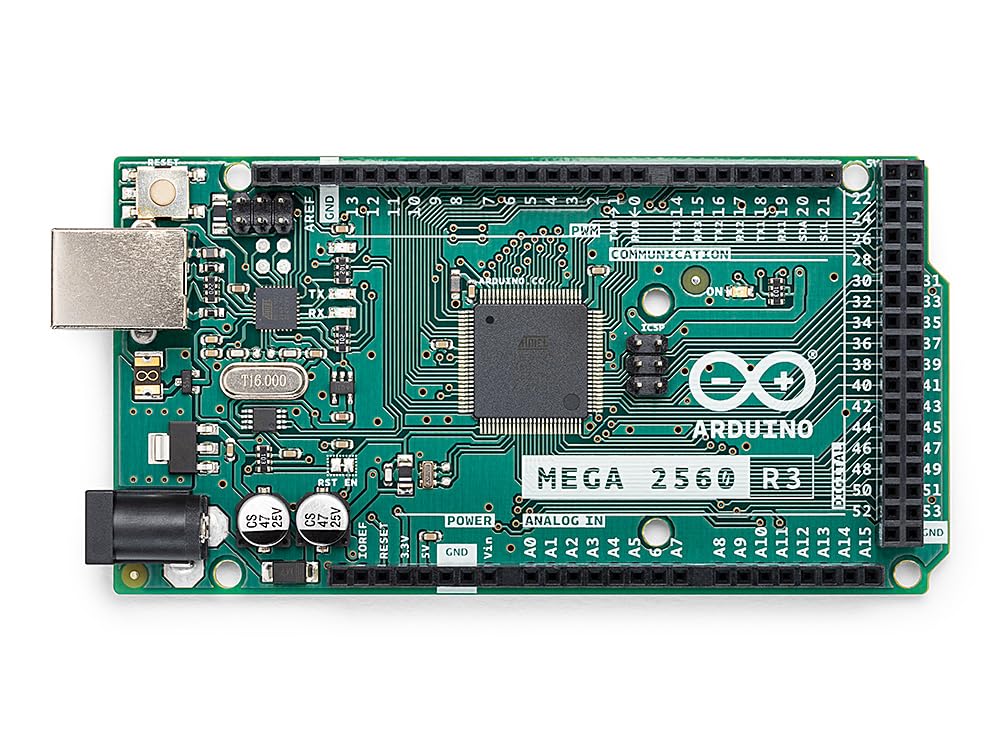

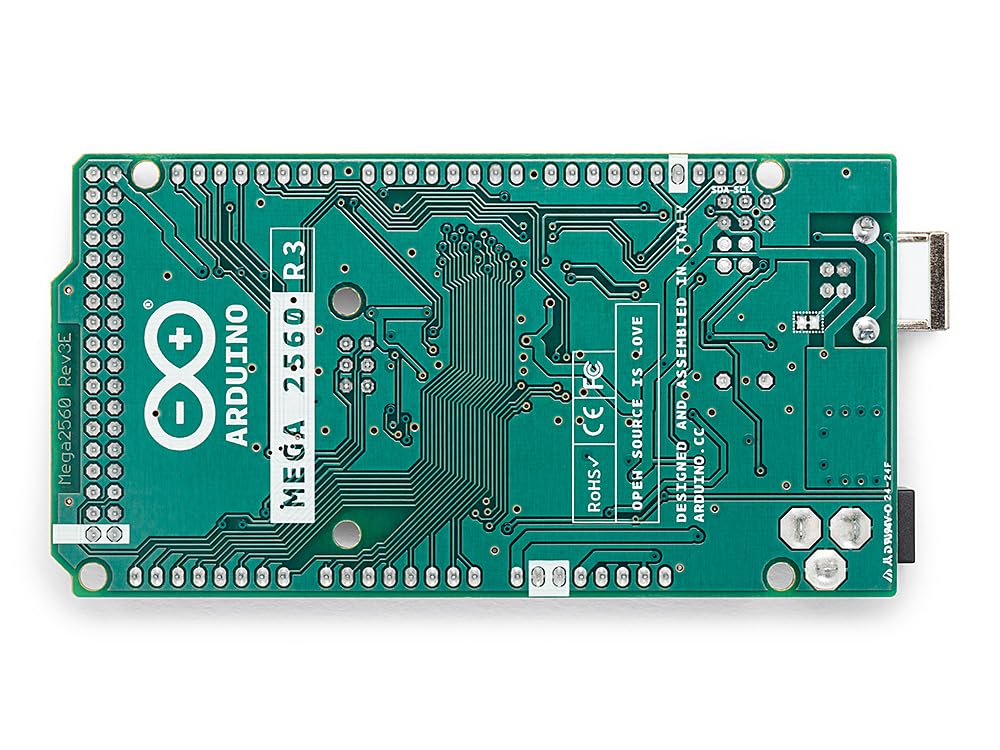

Arduino Mega 2560 Rev3 [A000067]
- Official Arduino Mega 2560 Rev3, ATmega2560 at 16 MHz
- 54 digital I/O (15 PWM), 16 analogue inputs and 4 hardware UARTs
- 256 KB flash, 8 KB SRAM, 4 KB EEPROM for large sketches
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | KIDS-023-3 |
|---|---|
| Category | Arduino |
| Unit price | $69.99 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
When a project outgrows an Uno, the Arduino Mega 2560 Rev3 is the usual next step. It keeps the familiar Arduino workflow but hands you 54 digital I/O pins, 16 analogue inputs and four hardware serial ports — room for the kind of build where you simply run out of pins on a smaller board.
The ATmega2560 runs at 16 MHz with 256 KB of flash, 8 KB of SRAM and 4 KB of EEPROM, so there is space for large sketches and the libraries that come with them. It is the board of choice for 3D printers, multi-axis robotics, home-automation controllers and anything that has to talk to several devices at once.
Key Features
- ATmega2560 microcontroller — 8-bit AVR at 16 MHz with 256 KB flash, 8 KB SRAM and 4 KB EEPROM
- 54 digital I/O pins — 15 of them usable as PWM outputs
- 16 analogue inputs — 10-bit resolution for sensors of every kind
- Four hardware UARTs — Talk to several serial peripherals at once without software serial workarounds
- Simple USB programming — Upload sketches and open a serial monitor straight from the Arduino IDE
- Shield compatible — Works with most Uno shields as well as Mega-specific ones
Specifications
| Brand | Arduino |
|---|---|
| Model | Mega 2560 Rev3 (A000067) |
| Microcontroller | Microchip ATmega2560, 8-bit AVR |
| Clock speed | 16 MHz |
| Flash | 256 KB (8 KB used by the bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Digital I/O | 54 pins, 15 with PWM |
| Analogue inputs | 16, 10-bit |
| Serial ports | 4 hardware UARTs |
| Operating voltage | 5 V |
| USB | USB Type-B for programming and power |
| Board size | 101.5 × 53.3 mm |
| Programming | Arduino IDE |
What's in the Box

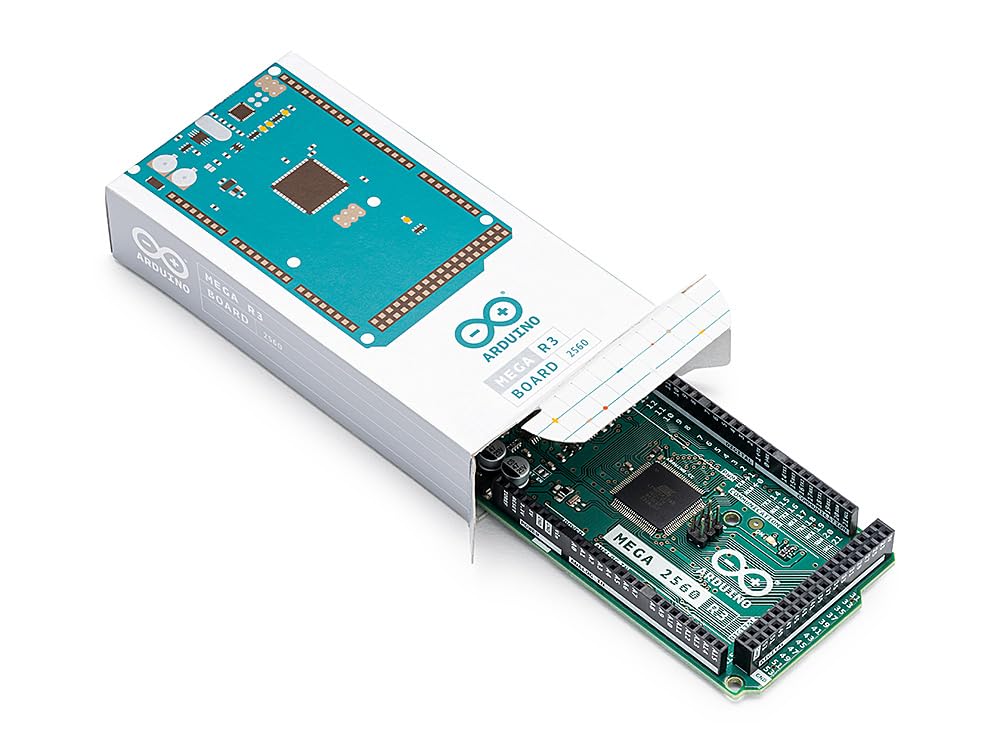

- 1 × Arduino Mega 2560 Rev3 board
A USB Type-B cable is sold separately.
Where you'll put it to work.
The most widely supported microcontroller platform: thousands of libraries, shields and tutorials, and it just works with the Arduino IDE.
Rapid prototyping
Wire up sensors on a breadboard and test an idea in an afternoon.
Robotics
Servos, stepper motors and distance sensors for rovers, arms and line followers.
Automation & control
Relays, timers and sensor-driven logic for greenhouses, aquariums and workshops.
STEM education
The standard teaching board in schools and universities, with a huge library of lessons.
