Arduino MKR WiFi 1010 [ABX00023]
- Official Arduino MKR WiFi 1010, SAMD21 Arm Cortex-M0+ at 48 MHz
- Wi-Fi and Bluetooth LE via the u-blox NINA-W102 module
- ECC508 crypto chip and Li-Po charging on board; Arduino IoT Cloud ready
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | KIDS-023-6 |
|---|---|
| Category | Arduino |
| Unit price | $51.96 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview

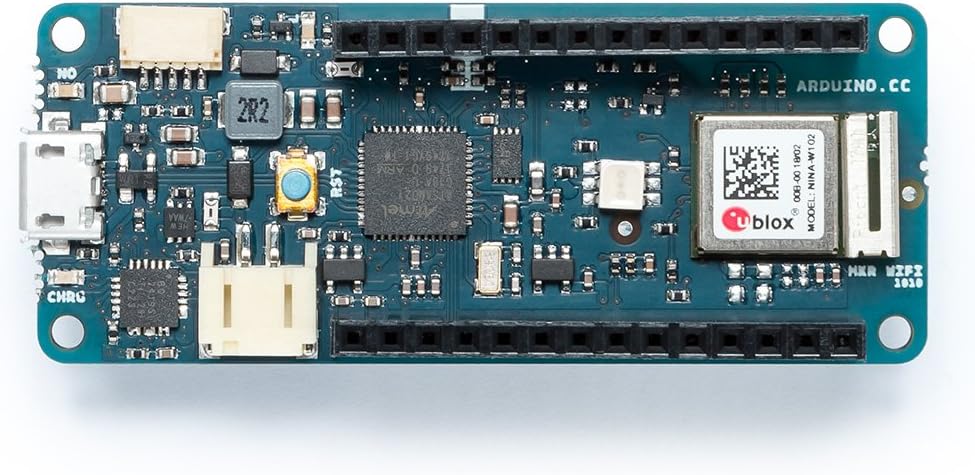

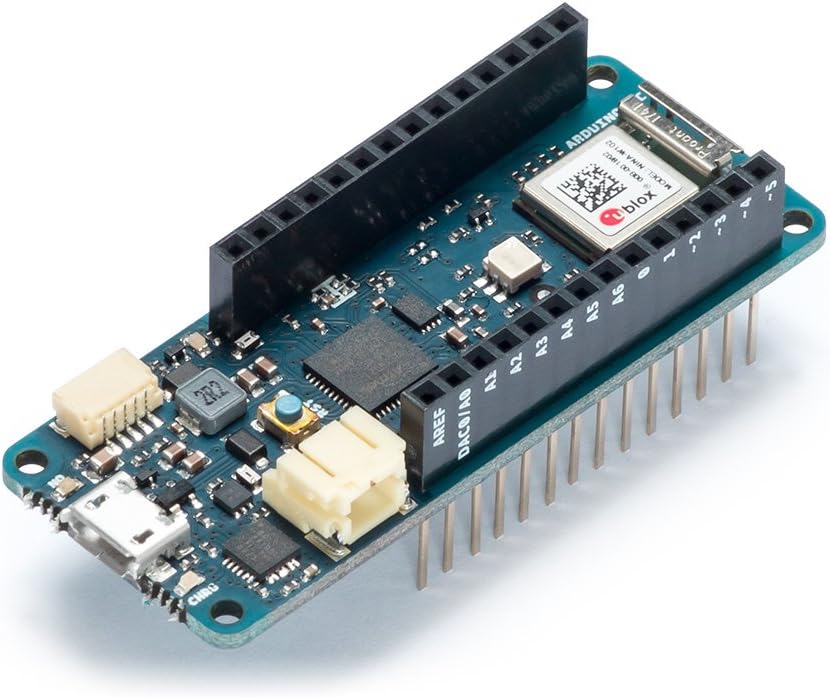

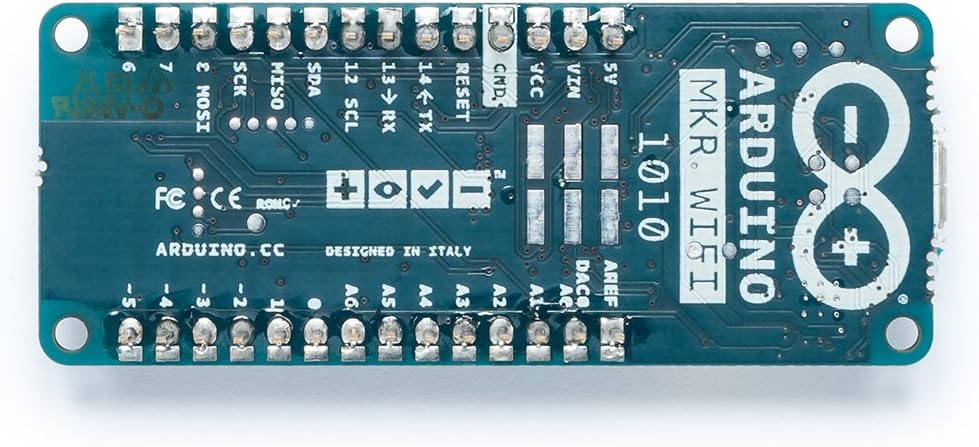

The Arduino MKR WiFi 1010 is the easiest entry point into the MKR family for connected projects. Wanted an automated house, or a smart garden? This board is Arduino IoT Cloud compatible, so you can connect devices, visualise data and control or share a project from anywhere in the world.
It is built on the SAMD21 Arm Cortex-M0+ running at 48 MHz, paired with a u-blox NINA-W102 module that brings Wi-Fi 802.11 b/g/n and Bluetooth Low Energy on board. A separate ECC508 crypto chip handles secure communication, which matters as soon as your device starts talking to the internet. Power comes from USB or a single LiPo cell, with charging handled on board.
Key Features
- 32-bit Arm Cortex-M0+ processor — Microchip SAMD21 at 48 MHz, comfortable with wireless work and real-time tasks
- Wi-Fi and Bluetooth in one module — u-blox NINA-W102 providing 802.11 b/g/n and BLE for IoT connectivity
- Secure by design — On-board ECC508 crypto chip for authenticated, encrypted communication
- Memory for real projects — 256 KB flash and 32 KB SRAM, enough for cloud integration and live data handling
- Flexible I/O — Digital and analogue pins with 12-bit ADC and a 10-bit DAC, plus I²C, SPI and UART
- Battery ready — Li-Po connector with on-board charging for portable, always-on devices
- Arduino IDE compatible — Full library and example support through the Arduino IDE and Arduino Cloud Editor
Specifications
| Brand | Arduino |
|---|---|
| Model | MKR WiFi 1010 (ABX00023) |
| Microcontroller | Microchip SAMD21 Cortex-M0+ 32-bit |
| Clock speed | 48 MHz |
| Flash | 256 KB |
| SRAM | 32 KB |
| Wireless module | u-blox NINA-W102 (Wi-Fi 802.11 b/g/n and Bluetooth LE) |
| Security | Microchip ECC508 crypto chip |
| Operating voltage | 3.3 V |
| Analogue | 12-bit ADC inputs, 10-bit DAC output |
| Interfaces | I²C, SPI, UART, PWM |
| Power | Micro-USB, or single-cell Li-Po with on-board charger |
| Programming | Arduino IDE, Arduino Cloud Editor |
What's in the Box
- 1 × Arduino MKR WiFi 1010 board
Where you'll put it to work.
The most widely supported microcontroller platform: thousands of libraries, shields and tutorials, and it just works with the Arduino IDE.
Rapid prototyping
Wire up sensors on a breadboard and test an idea in an afternoon.
Robotics
Servos, stepper motors and distance sensors for rovers, arms and line followers.
Automation & control
Relays, timers and sensor-driven logic for greenhouses, aquariums and workshops.
STEM education
The standard teaching board in schools and universities, with a huge library of lessons.
