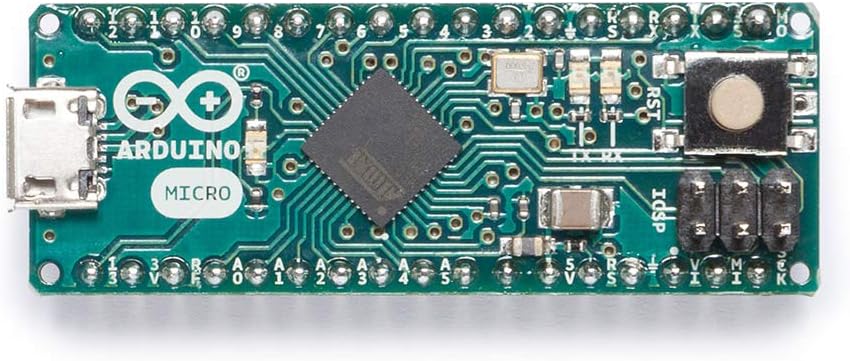

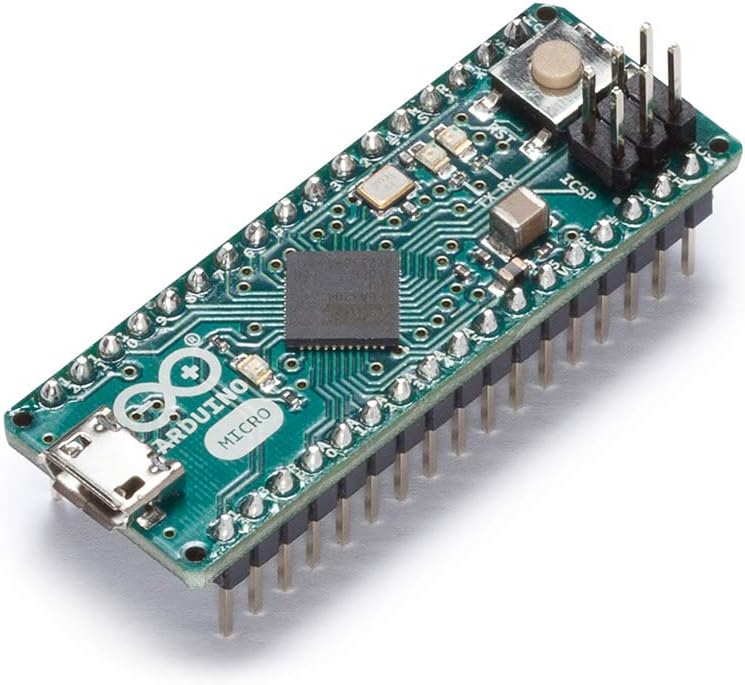

Arduino Micro with Headers [A000053]
- Official Arduino Micro, ATmega32U4 at 16 MHz with headers fitted
- Native USB: acts as a keyboard, mouse or HID device
- Only 48 x 18 mm, with 20 digital I/O and 12 analogue inputs
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | KIDS-023-9 |
|---|---|
| Category | Arduino |
| Unit price | $39.99 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
The Arduino Micro squeezes a full Arduino into a board just 48 × 18 mm — small enough to sit on a breadboard and still leave room to work. It ships with pre-soldered male headers, so it plugs straight in with no assembly.
Its defining feature is the ATmega32U4, which has native USB built into the microcontroller. That means the Micro can present itself to a computer as a keyboard, mouse or other USB device, not merely as a serial port — the basis for custom input devices, macro pads and game controllers.
Key Features
- ATmega32U4 microcontroller — 16 MHz with 32 KB flash, 2.5 KB SRAM and 1 KB EEPROM
- Native USB — Acts as a USB keyboard, mouse or HID device directly, with no extra bridge chip involved
- Compact and breadboard-friendly — 48 × 18 mm with pre-soldered headers
- Plenty of I/O — 20 digital I/O pins with 7 PWM outputs and 12 analogue inputs
- Arduino IDE compatible — Programmed over micro-USB with the full Arduino library ecosystem
Specifications
| Brand | Arduino |
|---|---|
| Model | Arduino Micro with headers (A000053) |
| Microcontroller | Microchip ATmega32U4, 8-bit AVR |
| Clock speed | 16 MHz |
| Flash | 32 KB (4 KB used by the bootloader) |
| SRAM | 2.5 KB |
| EEPROM | 1 KB |
| Digital I/O | 20 pins, 7 with PWM |
| Analogue inputs | 12 |
| Operating voltage | 5 V |
| USB | Micro-USB with native USB HID support |
| Headers | Male headers pre-soldered |
| Board size | 48 × 18 mm |
| Host support | Windows, macOS, Linux |
What's in the Box

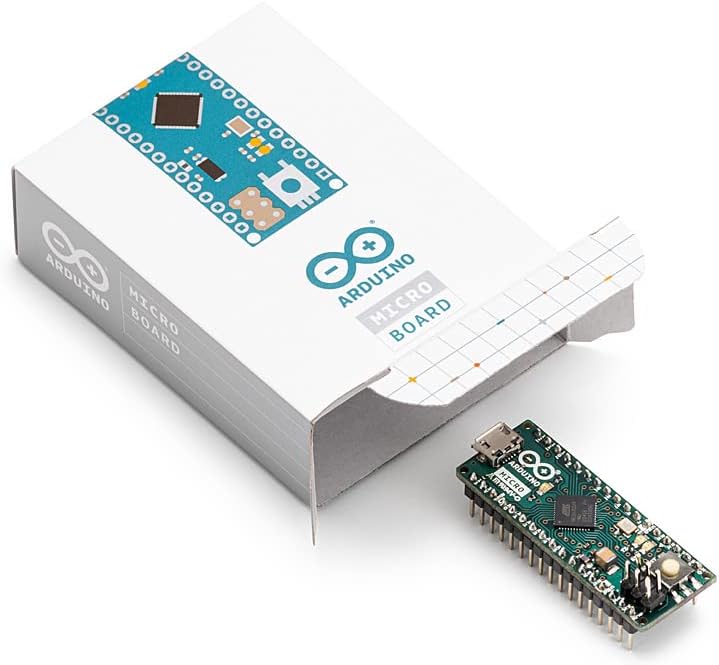

- 1 × Arduino Micro board with pre-soldered headers
Where you'll put it to work.
The most widely supported microcontroller platform: thousands of libraries, shields and tutorials, and it just works with the Arduino IDE.
Rapid prototyping
Wire up sensors on a breadboard and test an idea in an afternoon.
Robotics
Servos, stepper motors and distance sensors for rovers, arms and line followers.
Automation & control
Relays, timers and sensor-driven logic for greenhouses, aquariums and workshops.
STEM education
The standard teaching board in schools and universities, with a huge library of lessons.
