Nano ATmega328P Board, USB-C (2-Pack)
Product Details
Overview

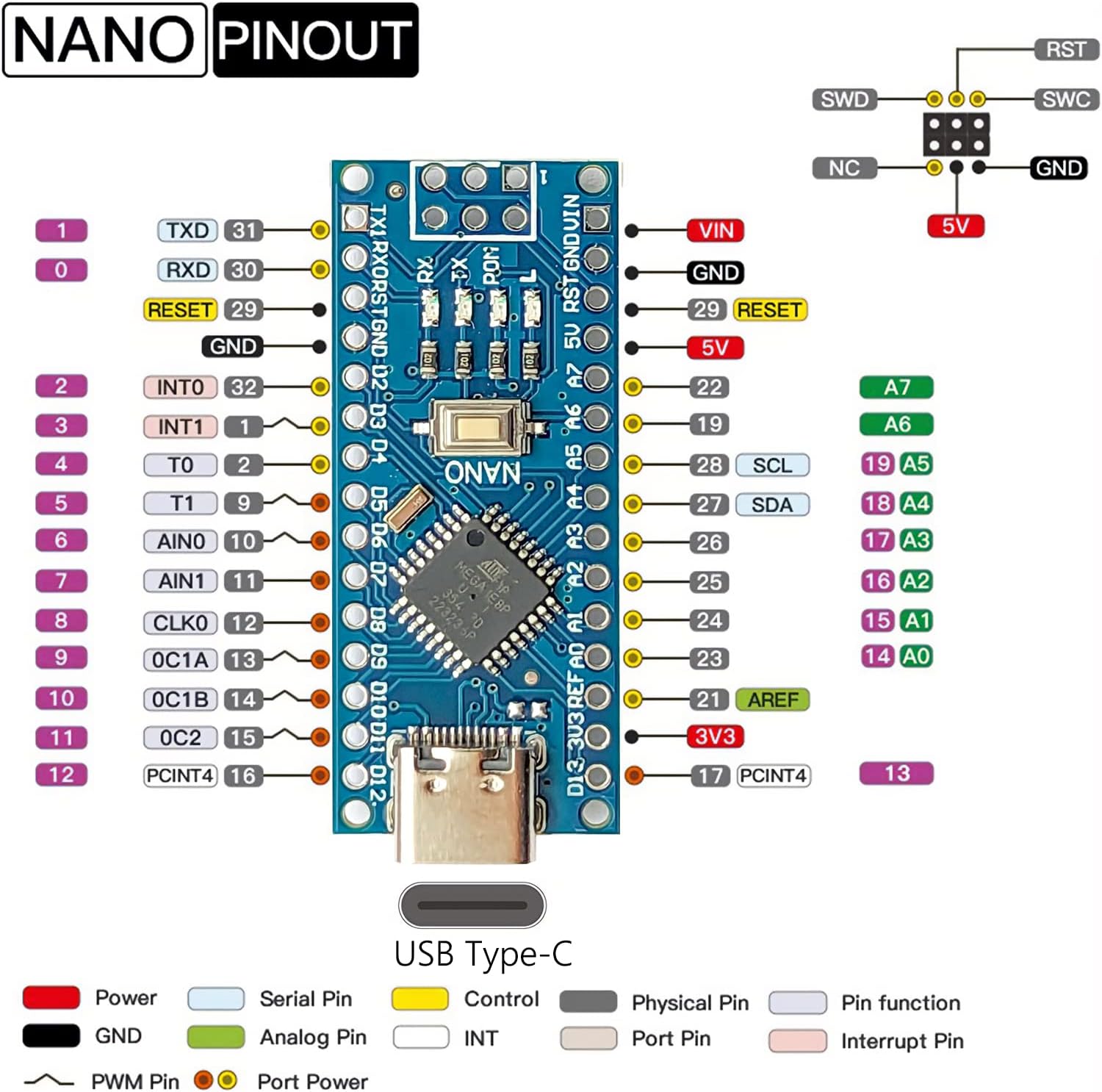

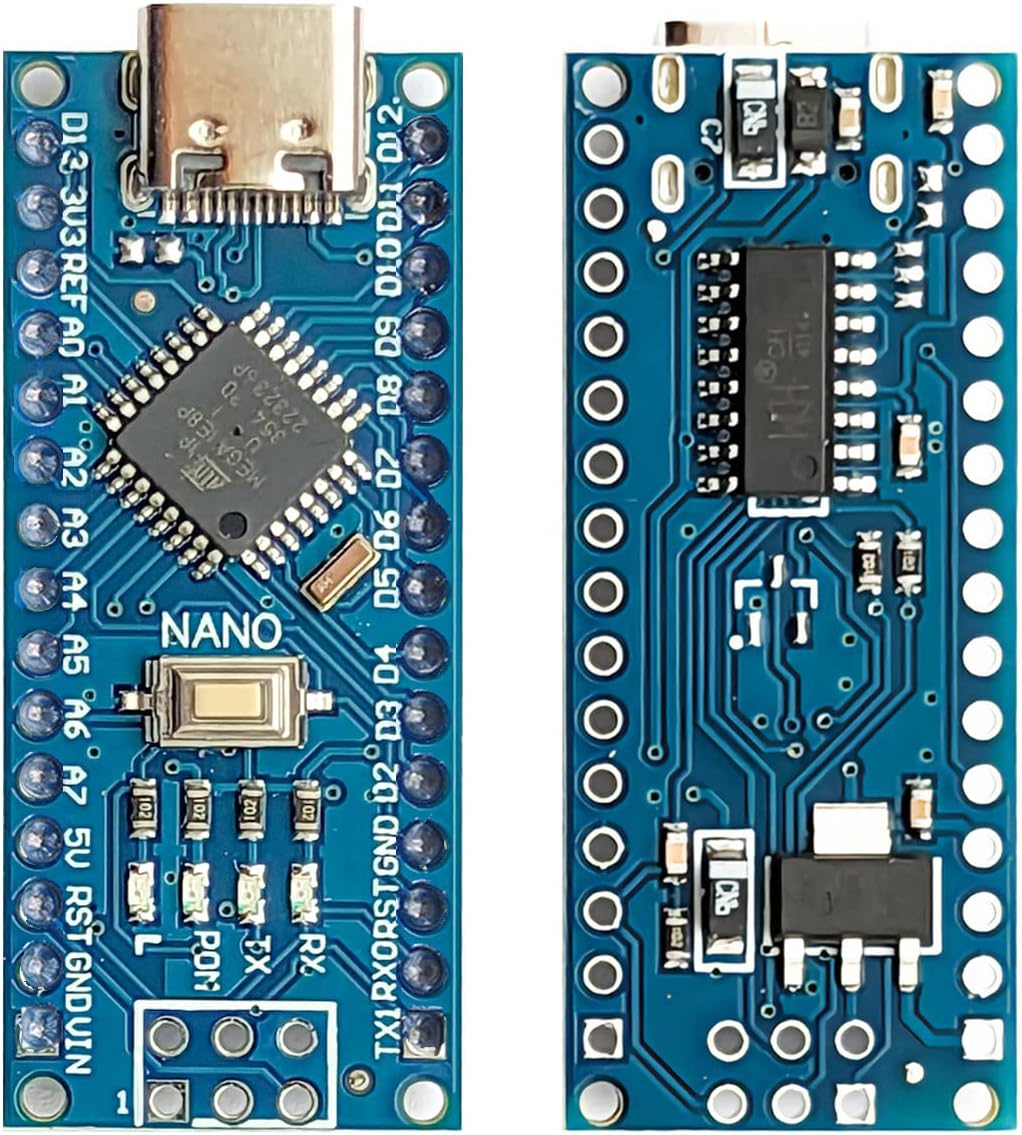

The IoTCrazy Nano V3.0 is an Arduino Nano compatible board redesigned around the ATmega328P. It keeps the pinout and dimensions of the original — just 45 × 18 mm — so it drops straight into existing Nano projects, but at a fraction of the price of the official board.
It carries 32 KB of flash and 2 KB of SRAM, with 14 digital I/O pins (6 of them PWM-capable) and 8 analogue inputs. Programming and power both run over a modern USB Type-C connector, and the headers arrive pre-soldered, so the board is ready for a breadboard the moment you unpack it.
Built with laser electroplating and precision soldering, it is a dependable everyday board for robotics, home automation, IoT nodes and classroom work.
Key Features
- Premium build — Laser electroplating and precision soldering for a durable, clean finish
- Excellent value — A fraction of the price of the official board, with no compromise on the essentials
- Compact — 45 × 18 mm, ideal for tight enclosures and space-constrained builds
- Versatile I/O — 14 digital pins (6 PWM) and 8 analogue inputs
- USB Type-C — Reversible connector for programming and power
- Pre-soldered headers — No assembly needed before your first project
- Supplied as a 2-pack — Two identical boards, handy for paired projects or as a spare

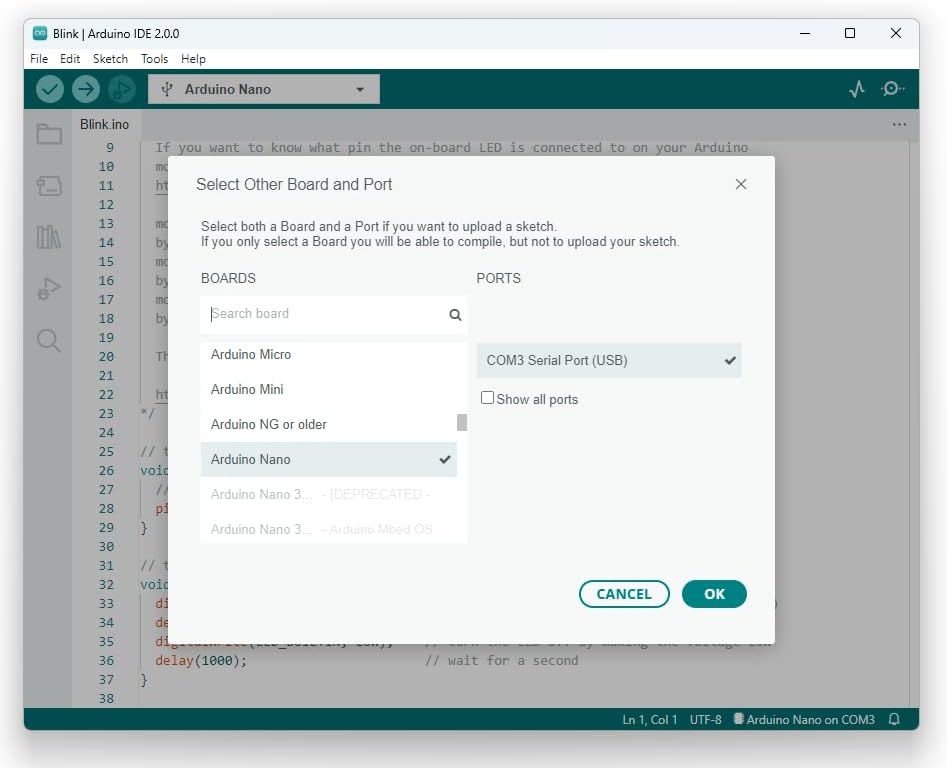

- Arduino IDE support — Programmed in C/C++ with the full Arduino library ecosystem
Specifications
| Brand | IoTCrazy |
|---|---|
| Compatibility | Arduino Nano 3.0 pinout |
| Microcontroller | Microchip ATmega328P, 8-bit AVR |
| Clock speed | 16 MHz |
| Flash | 32 KB |
| SRAM | 2 KB |
| Digital I/O | 14 pins, 6 with PWM |
| Analogue inputs | 8 |
| USB bridge | CH340G |
| USB connector | Type-C, for programming and power |
| Headers | Pre-soldered |
| Board size | 45 × 18 mm |
| Host support | Windows 10, macOS, Linux |
| Quantity | 2 boards |
| Warranty | 3 months |
Good to Know
This board uses the CH340G USB-to-serial bridge. If your computer does not detect it straight away, install the CH340 driver first — our CH340 driver installation guide covers Windows step by step.
Please note: the CH340 driver for this board is not supported on Apple M-series (M1/M2/M3) Macs.
What's in the Box
- 2 × IoTCrazy Nano ATmega328P boards with pre-soldered headers
Nano ATmega328P Board, USB-C (2-Pack)
- Two Arduino Nano compatible boards, ATmega328P at 16 MHz
- USB Type-C with pre-soldered headers on both
- CH340G bridge; driver not supported on Apple M-series Macs
