IoTCrazy MEGA 2560 Rev3 Board with USB Cable

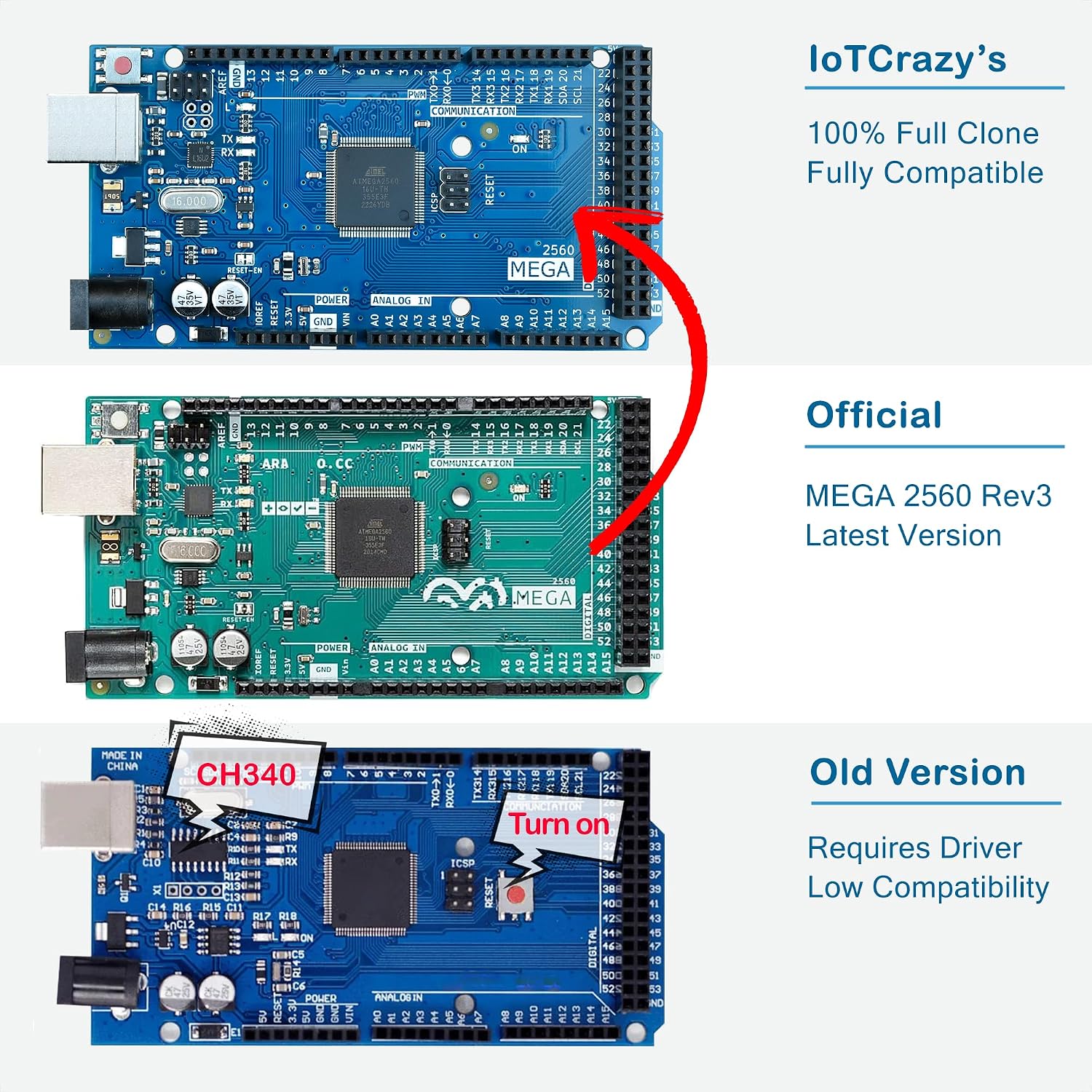

- Clone of the official Arduino MEGA 2560 Rev3 at a lower price
- ATmega2560 with 54 digital I/O (15 PWM) and 16 analogue inputs
- 100% Arduino IDE compatible; USB data cable included
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | IOT-012-001 |
|---|---|
| Category | Arduino |
| Unit price | $29.99 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
The IoTCrazy Upgraded MEGA 2560 Rev3 is a faithful clone of the official Arduino MEGA 2560 Rev3, built to deliver the same reliability and performance at a considerably friendlier price. It is 100% compatible with the Arduino IDE, so every MEGA sketch, library and shield works exactly as it should.
The ATmega2560 brings the pin count that makes this board worth choosing: 54 digital I/O pins with 15 PWM outputs and 16 analogue inputs, backed by 256 KB of flash (8 KB reserved for the bootloader). That is the right platform for 3D printers, multi-axis robotics, large sensor arrays and any project where a smaller board simply runs out of pins.

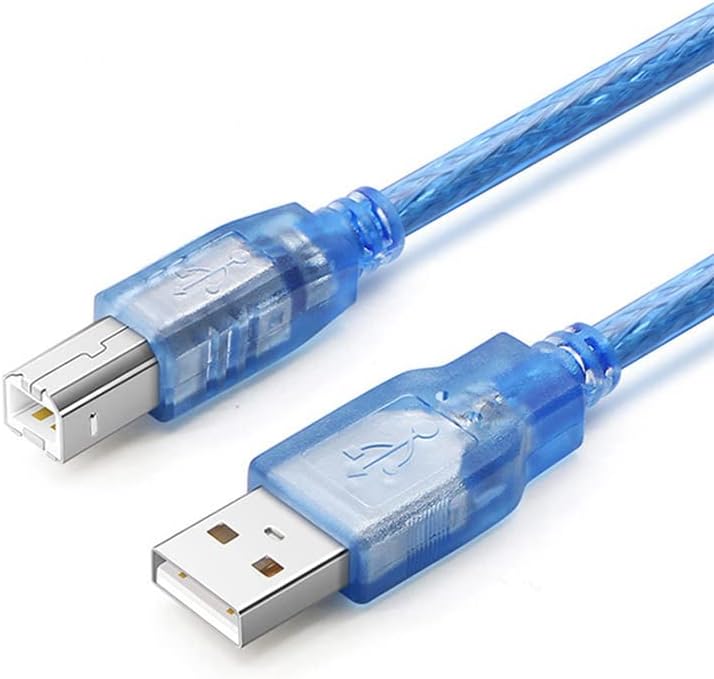

A USB data cable is included, so the board is ready to program the moment it arrives.
Key Features
- ATmega2560 microcontroller — Robust 8-bit AVR performance for demanding projects
- 54 digital I/O pins — 15 of them with PWM output for motors, LEDs and servos
- 16 analogue inputs — Room for large sensor arrays
- 256 KB flash — 8 KB reserved for the bootloader, leaving plenty for large sketches
- Arduino IDE compatible — Full library, shield and example support
- USB cable included — Nothing else to buy before your first upload
Specifications
| Brand | IoTCrazy |
|---|---|
| Model | MEGA 2560 Rev3 development board |
| Compatibility | Arduino MEGA 2560 Rev3 pinout and shields |
| Microcontroller | ATmega2560, 8-bit AVR |
| Clock speed | 16 MHz |
| Flash | 256 KB (8 KB used by the bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Digital I/O | 54 pins, 15 with PWM |
| Analogue inputs | 16 |
| Serial ports | 4 hardware UARTs |
| Operating voltage | 5 V |
| Programming | Arduino IDE |
| Warranty | 3 months |
What's in the Box
- 1 × IoTCrazy MEGA 2560 Rev3 development board
- 1 × USB data cable
Where you'll put it to work.
The most widely supported microcontroller platform: thousands of libraries, shields and tutorials, and it just works with the Arduino IDE.
Rapid prototyping
Wire up sensors on a breadboard and test an idea in an afternoon.
Robotics
Servos, stepper motors and distance sensors for rovers, arms and line followers.
Automation & control
Relays, timers and sensor-driven logic for greenhouses, aquariums and workshops.
STEM education
The standard teaching board in schools and universities, with a huge library of lessons.
