ESP32-WROOM-32 Dev Board, USB-C (CP2102)
- ESP32-WROOM-32D dev board with USB Type-C and a Silicon Labs CP2102 bridge
- Dual-core up to 240 MHz with Wi-Fi and Bluetooth 4.2 BLE
- CP2102 drivers are mature on Windows, macOS and Linux
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | IOT-011-002 |
|---|---|
| Category | ESP32 |
| Unit price | $13.99 |
| Availability | 94 in stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview

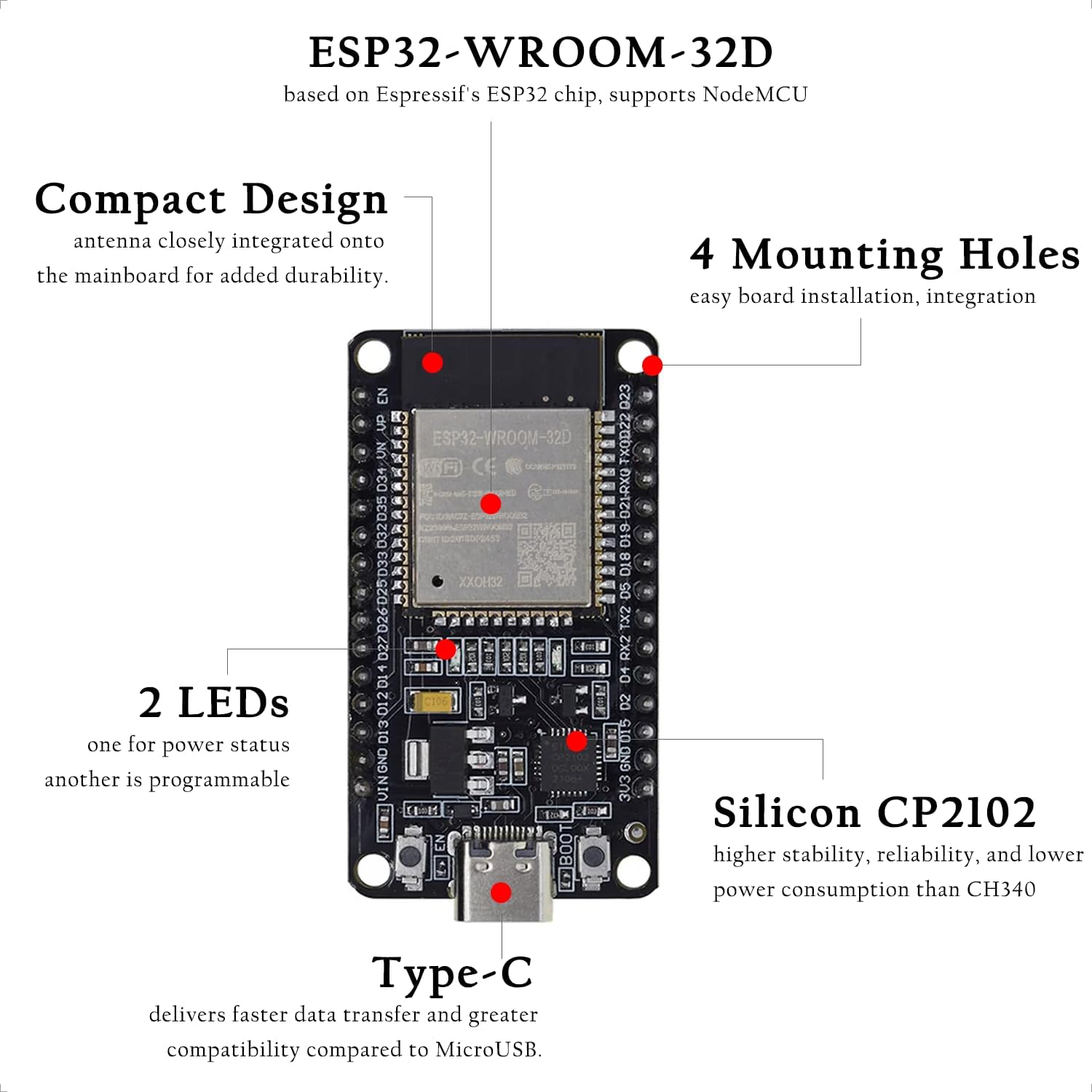

The ESP32-WROOM-32 core development board puts Espressif's dual-core ESP32 module on a compact board with a USB Type-C connector and a Silicon Labs CP2102 USB-to-serial bridge. Wi-Fi and Bluetooth are both on board, which makes it a solid default choice for almost any connected project.
Dual-core processing at up to 240 MHz leaves plenty of headroom for reading sensors, running a web server and handling wireless traffic at the same time. It works with the development environments you already know — Arduino IDE, MicroPython, ESP-IDF, PlatformIO — so there is very little to learn before you are productive.
Key Features
- ESP32-WROOM-32D module — Dual-core Xtensa LX6 at up to 240 MHz with 520 KB SRAM
- Wi-Fi and Bluetooth — 2.4 GHz 802.11 b/g/n plus Bluetooth 4.2 BR/EDR and BLE
- USB Type-C — Reversible connector for power, programming and serial debugging
- CP2102 USB bridge — Silicon Labs bridge with mature drivers on Windows, macOS and Linux; most systems recognise it without any manual install
- IoT ready — Works with common sensors, actuators and IoT protocols such as MQTT and HTTP
- Development friendly — Arduino IDE, MicroPython, ESP-IDF and PlatformIO all supported
Specifications
| Brand | IoTCrazy |
|---|---|
| Module | ESP32-WROOM-32D (Espressif ESP32) |
| Processor | Xtensa 32-bit LX6, dual-core |
| Clock speed | Up to 240 MHz |
| SRAM | 520 KB |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | v4.2 BR/EDR and BLE |
| USB bridge | Silicon Labs CP2102 |
| USB connector | Type-C (power and data) |

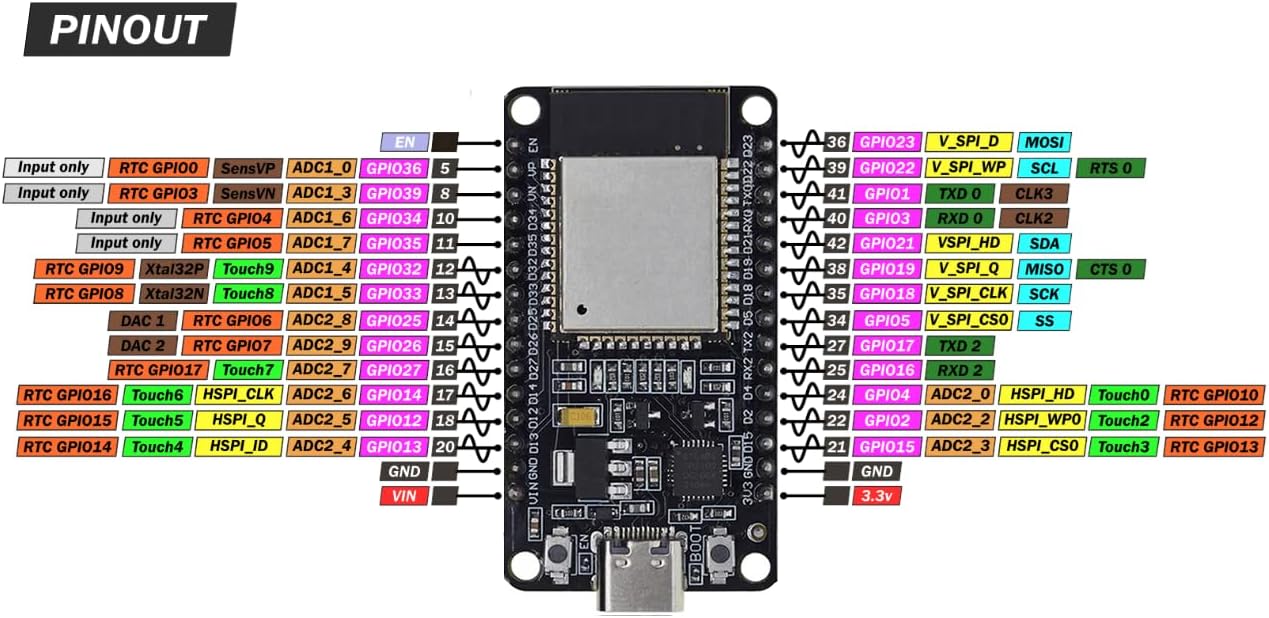

| Interfaces | GPIO, SPI, I²C, I²S, UART, ADC, DAC, PWM, capacitive touch |
| Programming | Arduino IDE, MicroPython, ESP-IDF, PlatformIO |
| Warranty | 3 months |
What's in the Box
- 1 × ESP32-WROOM-32 development board (USB Type-C, CP2102)
Where you'll put it to work.
A dual-core microcontroller with Wi-Fi and Bluetooth built in — the go-to board for connected devices that need to talk to phones, hubs and the cloud.
Smart home
Relays, lights and sensors that plug into Home Assistant, ESPHome or your own MQTT broker.
Wireless sensor nodes
Battery-powered stations that report temperature, humidity or soil moisture over Wi-Fi.
Bluetooth robotics
Control cars, arms and drones from a phone or gamepad over BLE — no extra radio module needed.
Cloud dashboards
Push live data to web dashboards and receive commands back through HTTP, MQTT or WebSockets.
