Arduino UNO R4 WiFi [ABX00087]
Product Details
Overview

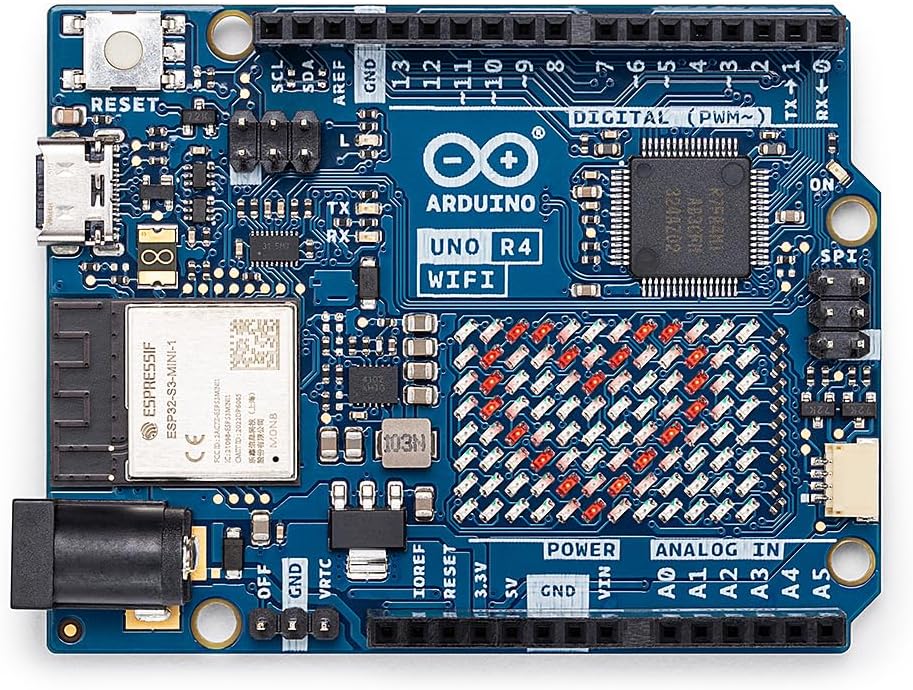

The Arduino UNO R4 WiFi pairs the Renesas RA4M1 microcontroller with an Espressif ESP32-S3 radio module, giving the familiar UNO form factor a serious jump in processing power and a set of peripherals the classic UNO never had.
Wi-Fi and Bluetooth are handled by the ESP32-S3, so cloud connectivity, remote sensors and wireless control need no add-on shield. On the board itself you also get a 12 × 8 LED matrix for instant visual feedback, a Qwiic connector for solder-free I²C sensors, CAN bus support for industrial and automotive work, and a 12-bit DAC with an operational amplifier for genuine analogue output.
It keeps the standard UNO pin layout and 5 V logic, so existing shields and accessories still fit — but now over a modern USB-C connection.
Key Features
- Two processors, one board — Renesas RA4M1 (Arm Cortex-M4) for control, ESP32-S3 for Wi-Fi and Bluetooth
- Wireless out of the box — Wi-Fi and Bluetooth for IoT projects, remote sensors and cloud connectivity
- Modern USB-C — Faster, reversible programming and power
- CAN bus support — Reliable real-time communication for industrial, automotive and robotics work
- Qwiic connector — Add I²C sensors and peripherals without soldering or breadboard wiring
- 12-bit DAC and OP-AMP — Precise analogue signal generation and amplification for audio and sensor projects
- 12 × 8 LED matrix — Show status, data or animations directly on the board
Specifications
| Brand | Arduino |
|---|---|
| Model | UNO R4 WiFi (ABX00087) |
| Main microcontroller | Renesas RA4M1, Arm Cortex-M4 at 48 MHz |
| Wireless module | Espressif ESP32-S3 (Wi-Fi and Bluetooth) |
| Flash | 256 KB |
| SRAM | 32 KB |
| EEPROM | 8 KB |
| Digital I/O | 14 pins, 6 with PWM |
| Analogue inputs | 6 |
| Analogue output | 12-bit DAC with operational amplifier |
| Bus support | CAN, I²C (including Qwiic connector), SPI, UART |
| Display | On-board 12 × 8 LED matrix |
| Operating voltage | 5 V |
| USB | USB-C for power and programming |
| Compatibility | Standard UNO form factor and shield pinout |

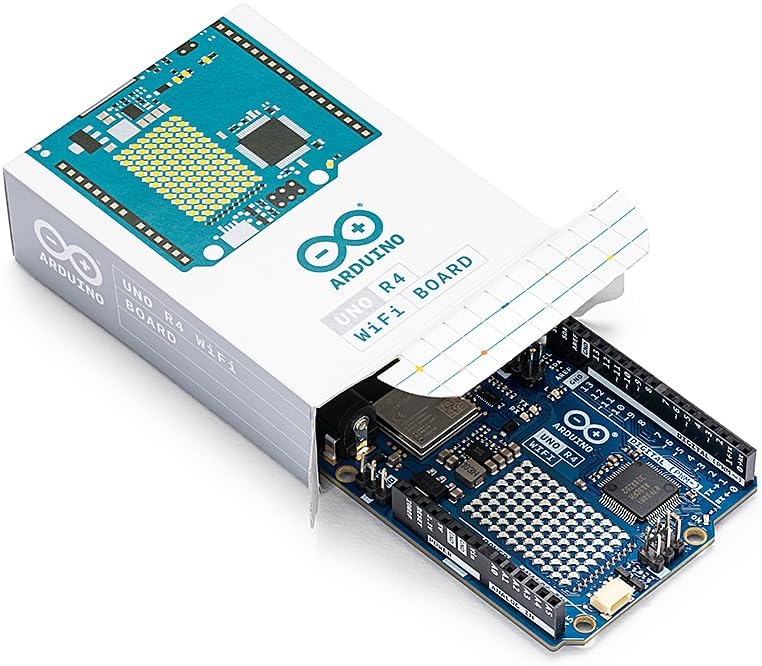

What's in the Box
- 1 × Arduino UNO R4 WiFi board
Arduino UNO R4 WiFi [ABX00087]
- Official Arduino UNO R4 WiFi with Renesas RA4M1 and ESP32-S3
- Wi-Fi, Bluetooth, CAN bus, 12-bit DAC and a Qwiic connector
- On-board 12 x 8 LED matrix, USB-C, standard UNO shield pinout
