Arduino Nano RP2040 Connect with Headers [ABX00053]
- Official Arduino Nano RP2040 Connect with headers fitted
- RP2040 dual-core at 133 MHz with 264 KB SRAM and 16 MB flash
- Wi-Fi, Bluetooth, a 6-axis IMU and a microphone on board
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | KIDS-023-10 |
|---|---|
| Category | Arduino |
| Unit price | $69.99 |
| Availability | 30 in stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
The Arduino Nano RP2040 Connect brings Raspberry Pi's RP2040 chip into the Nano form factor and adds everything needed for a connected, motion-aware project. It is Arduino IoT Cloud compatible, so you can connect devices, visualise data and control a project from anywhere in the world.

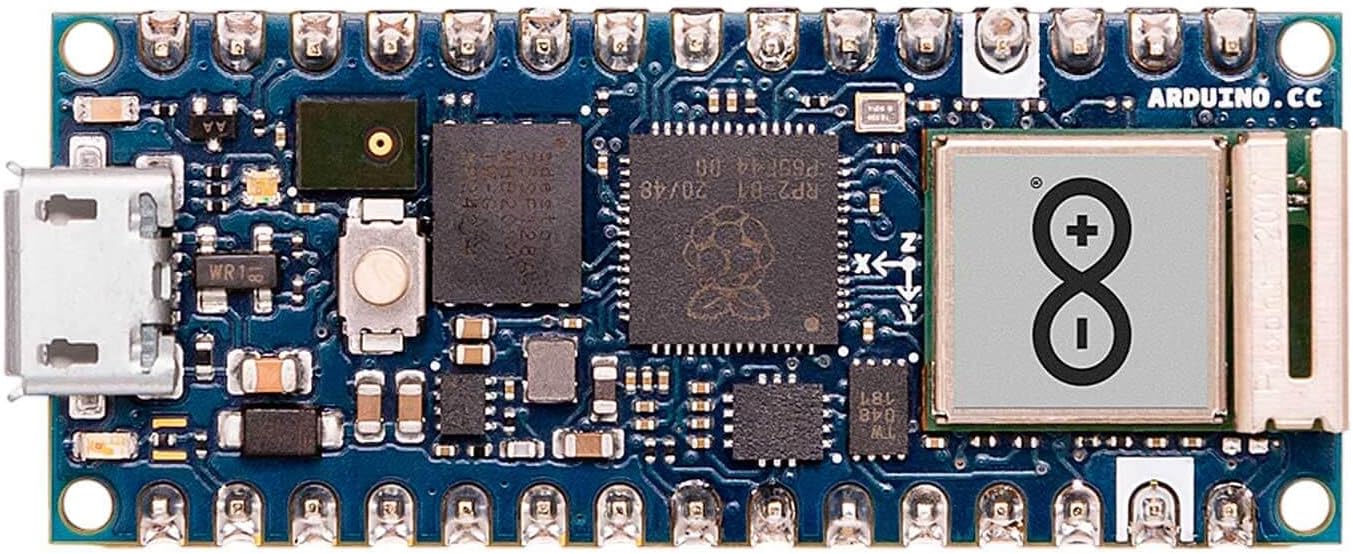

The RP2040 provides a dual-core Arm Cortex-M0+ running at 133 MHz with 264 KB of SRAM and 16 MB of flash — unusually generous storage for a board this size, and enough for edge machine-learning work and long sensor logs. Wireless comes from a u-blox NINA-W102 module providing Wi-Fi and Bluetooth, and an on-board 6-axis IMU adds accelerometer and gyroscope data for motion tracking and gesture recognition.

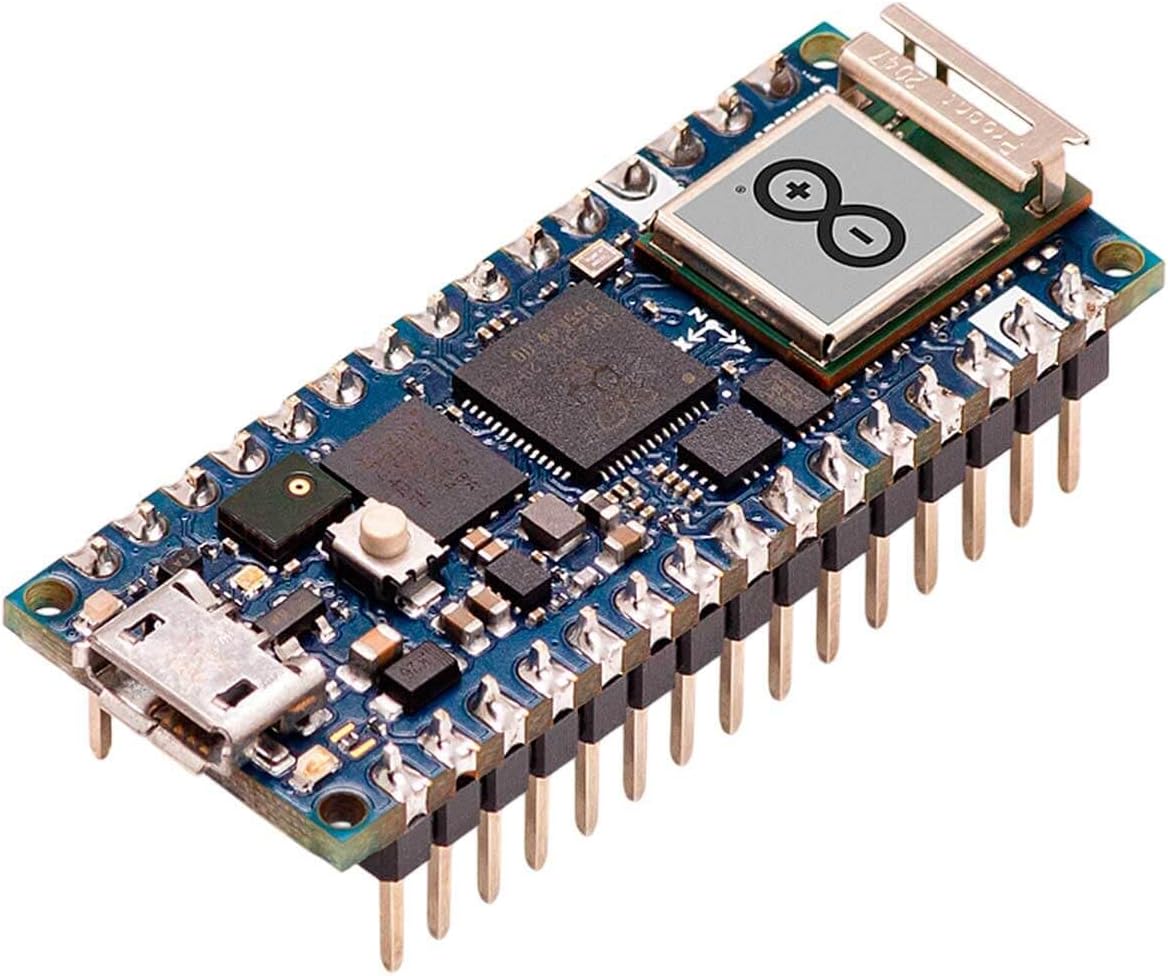

Supplied with headers already fitted, ready for a breadboard or a shield.
Key Features
- High-performance RP2040 — Dual-core Arm Cortex-M0+ at 133 MHz for real-time data processing
- Wi-Fi and Bluetooth built in — u-blox NINA-W102 module for cloud services, remote control and data logging
- Motion sensing on board — 6-axis IMU with 3D accelerometer and gyroscope for orientation and gesture work
- Ample memory — 264 KB SRAM and 16 MB flash, with room for edge machine learning
- Microphone included — On-board MEMS microphone for sound-reactive and voice-triggered projects
- Headers fitted — Plug straight into a breadboard or shield and start prototyping
Specifications
| Brand | Arduino |
|---|---|
| Model | Nano RP2040 Connect with headers (ABX00053) |
| Microcontroller | Raspberry Pi RP2040, dual-core Arm Cortex-M0+ |
| Clock speed | 133 MHz |
| SRAM | 264 KB |
| Flash | 16 MB |
| Wireless module | u-blox NINA-W102 (Wi-Fi and Bluetooth) |
| Motion sensor | 6-axis IMU (accelerometer and gyroscope) |
| Audio | On-board MEMS microphone |
| Operating voltage | 3.3 V |
| USB | Micro-USB |
| Headers | Pre-soldered |
| Board size | 45 × 18 mm |
| Programming | Arduino IDE, Arduino Cloud Editor, MicroPython |

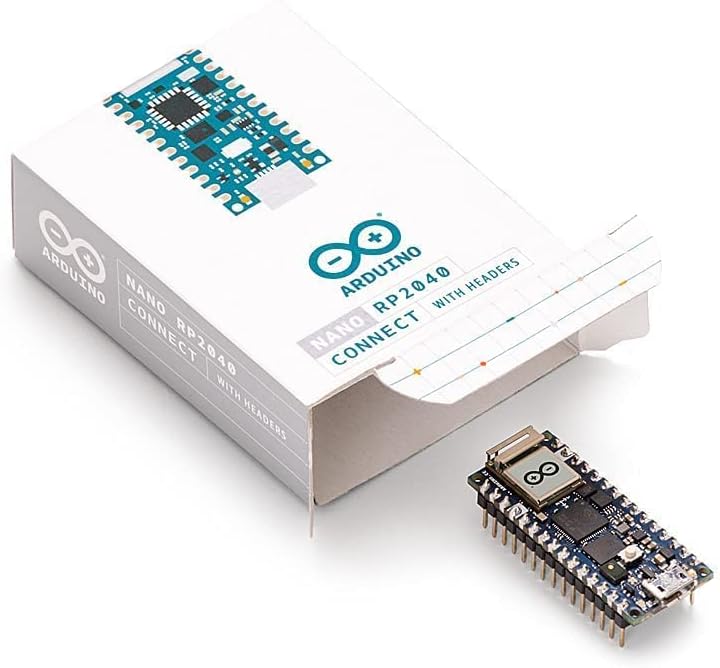

What's in the Box
- 1 × Arduino Nano RP2040 Connect board with headers
Where you'll put it to work.
A fast, low-cost microcontroller with flexible PIO state machines — equally at home running MicroPython in class or C/C++ in a product.
Learning MicroPython
Drag-and-drop firmware and a live REPL make it one of the friendliest ways to start embedded coding.
Embedded prototyping
PIO drives LEDs, displays and custom protocols precisely, without loading the main cores.
USB devices
Build keyboards, MIDI controllers and data loggers that appear as native USB devices.
Connected sensors
Wireless versions add Wi-Fi and Bluetooth for small IoT nodes and remote monitors.
