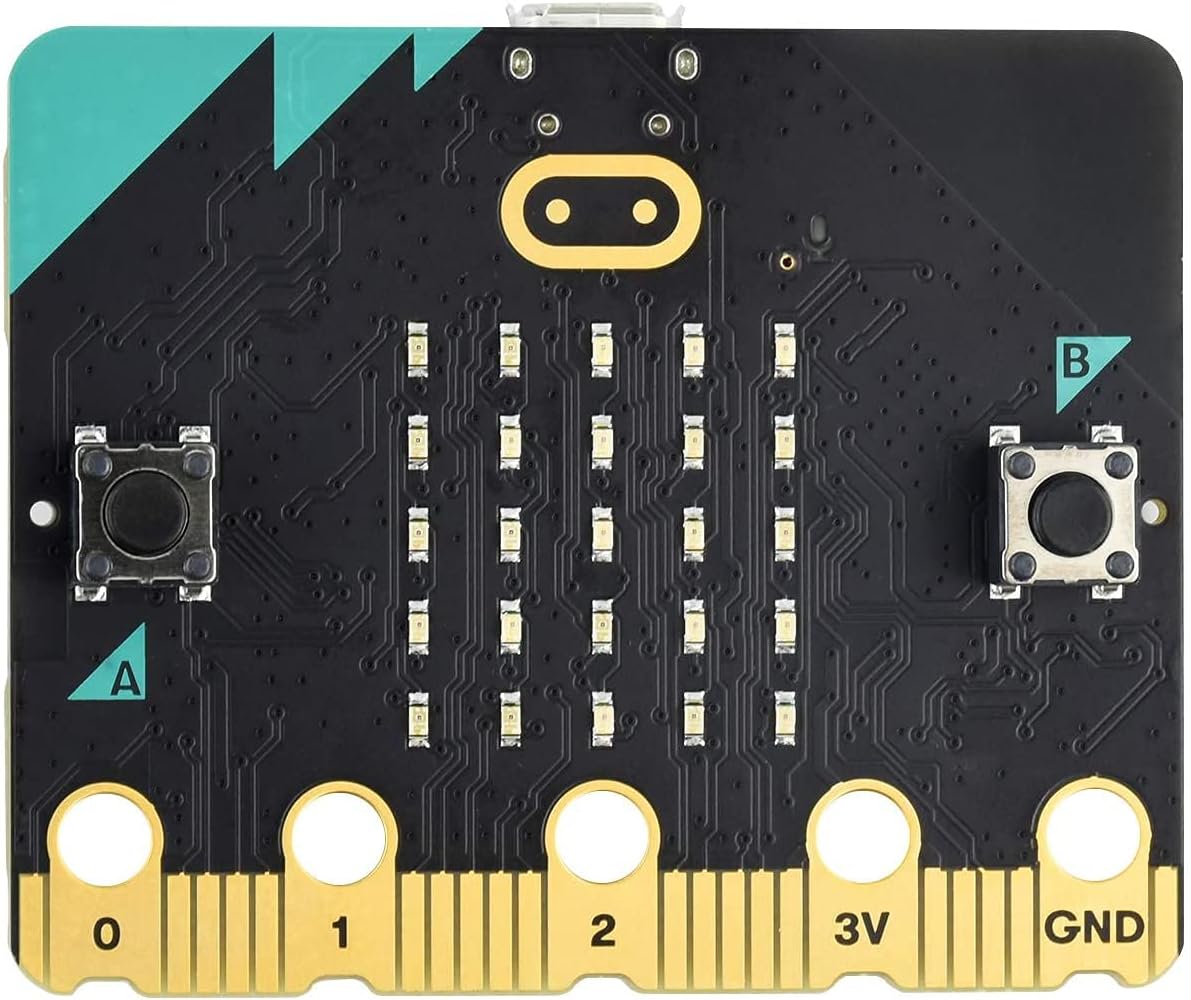

Official BBC micro:bit V2.21 with Protective Case
Product Details
Overview
The BBC micro:bit V2 is a small, programmable computer designed to get children and young people into coding and electronics in a hands-on way. Created by the BBC in partnership with a range of technology brands, it has become the standard board for classrooms, STEM clubs and coding clubs around the world.

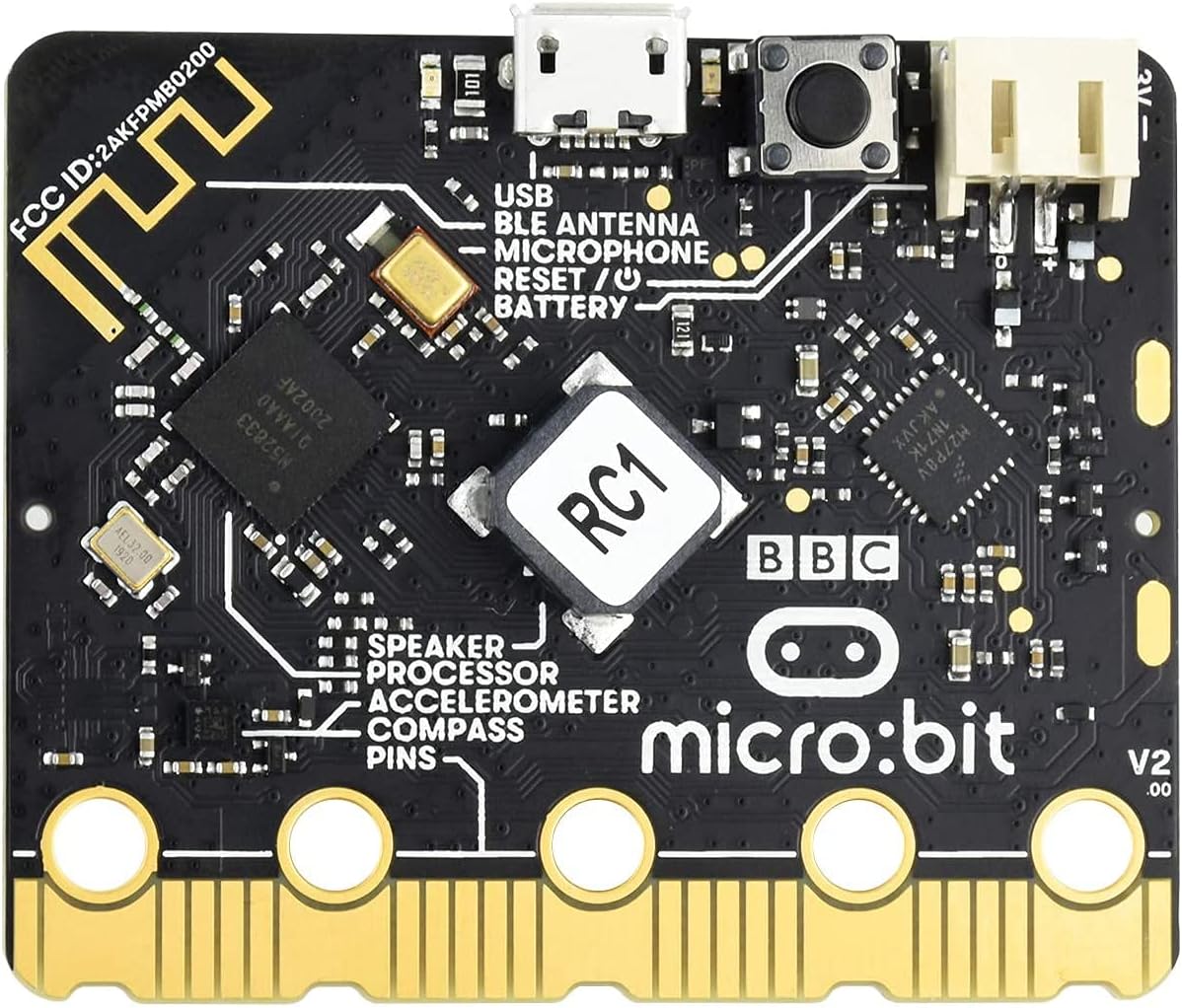

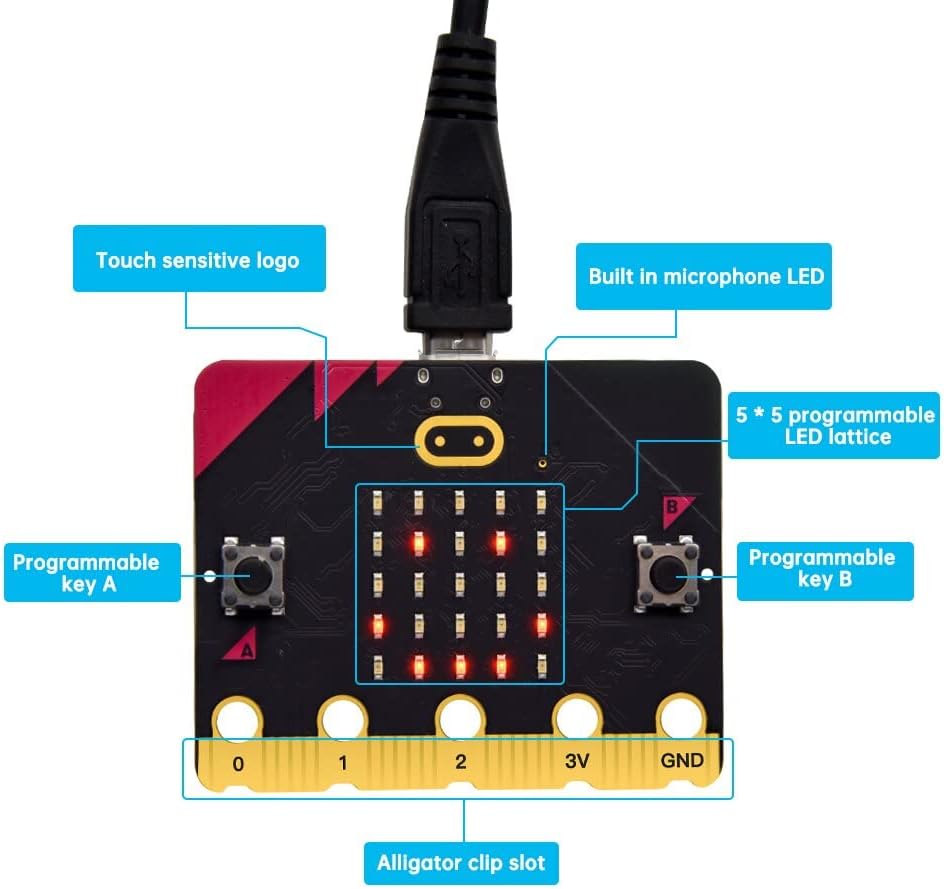

Measuring only 4 × 5 cm, it packs an Arm Cortex-M4 processor with 512 KB of flash and a genuinely useful set of inputs and outputs: a 5 × 5 LED matrix, two buttons, a built-in speaker and microphone, a touch-sensitive logo, an accelerometer, a magnetometer, a temperature sensor and a sleep / off mode.
It works with a wide choice of free online editors — from MakeCode blocks for absolute beginners through to MicroPython — so the same board suits a first lesson and a serious project. Thousands of free projects and lesson plans are available online. This listing is the official V2.21 board supplied with a frosted protective case.
Key Features
- Official BBC micro:bit V2.21 — The current official revision, with all the latest features and improvements
- Built-in speaker and microphone — Audio in and out on the board itself, for sound-reactive projects, playback and simple voice-triggered ideas
- Rich sensor set — Accelerometer, magnetometer and temperature sensor for motion, orientation and environment projects
- Wireless and USB — Bluetooth for phones and tablets, plus a micro-USB interface for programming and data transfer

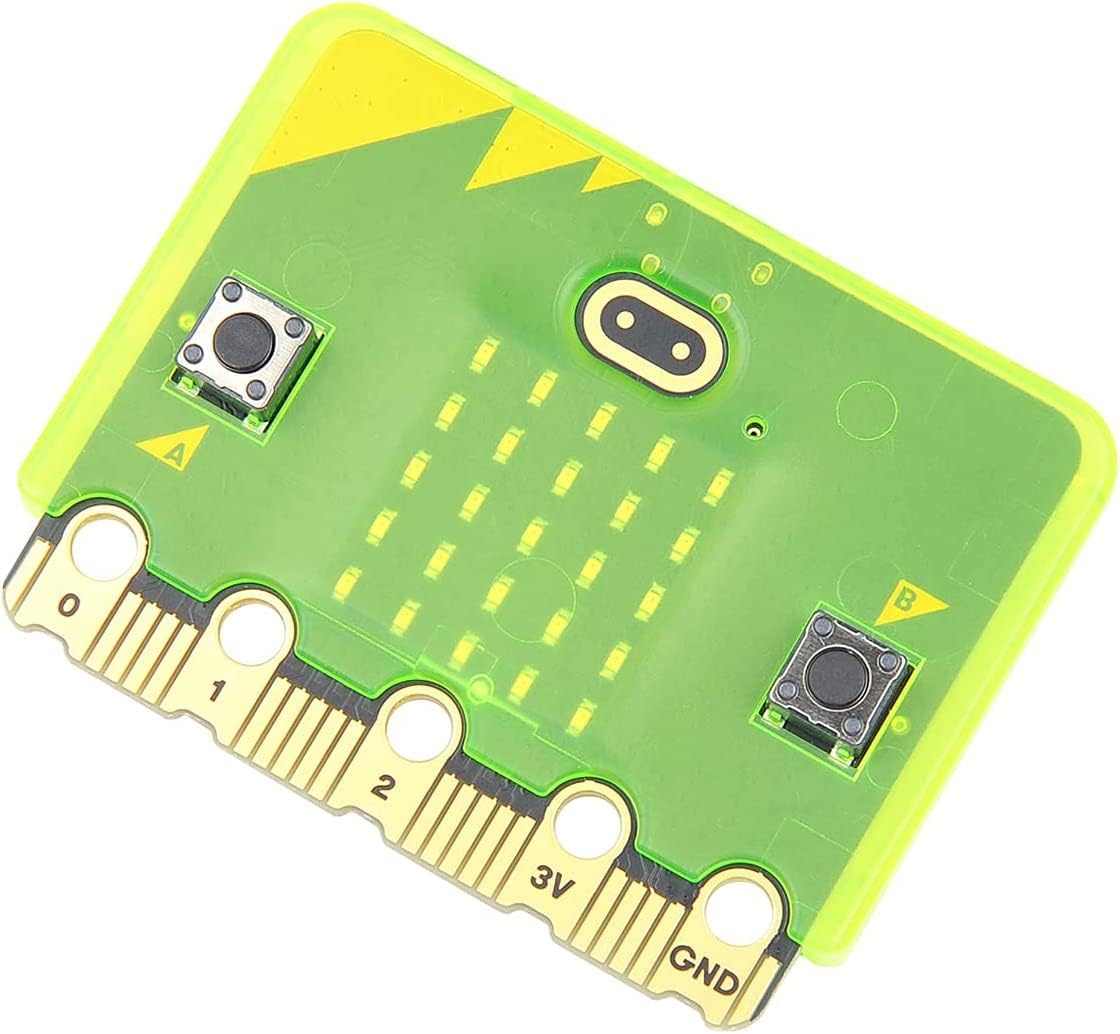

- Frosted protective case — Guards against knocks and scratches while leaving the LEDs, buttons and edge connector accessible
- Beginner friendly — Free online editors covering block coding, JavaScript and MicroPython
Specifications
| Brand | BBC micro:bit |
|---|---|
| Model | micro:bit V2.21 |
| Processor | Arm Cortex-M4 with floating point unit |
| Clock speed | 64 MHz |
| Flash | 512 KB |
| RAM | 128 KB |
| Display | 5 × 5 programmable LED matrix |
| Audio | Built-in speaker and MEMS microphone |
| Sensors | Accelerometer, magnetometer, temperature sensor, touch-sensitive logo |
| Wireless | Bluetooth Low Energy and 2.4 GHz radio |
| USB | Micro-USB for programming and power |
| Board size | Approximately 4 × 5 cm |
| Programming | MakeCode blocks, JavaScript, MicroPython, Scratch |
What's in the Box
- 1 × official BBC micro:bit V2.21 board — supplied in red, yellow, green or blue; the colour cannot be selected
- 1 × frosted protective case
A micro-USB cable and battery holder are not included with this listing — see our micro:bit starter kit if you would like them bundled.
Official BBC micro:bit V2.21 with Protective Case
- Official BBC micro:bit V2.21 board with a frosted protective case
- Built-in speaker and microphone, 5 x 5 LED matrix, accelerometer and compass
- Programmed with MakeCode blocks, JavaScript or MicroPython
