Official Raspberry Pi Camera Module V2.1, 8MP

Overview

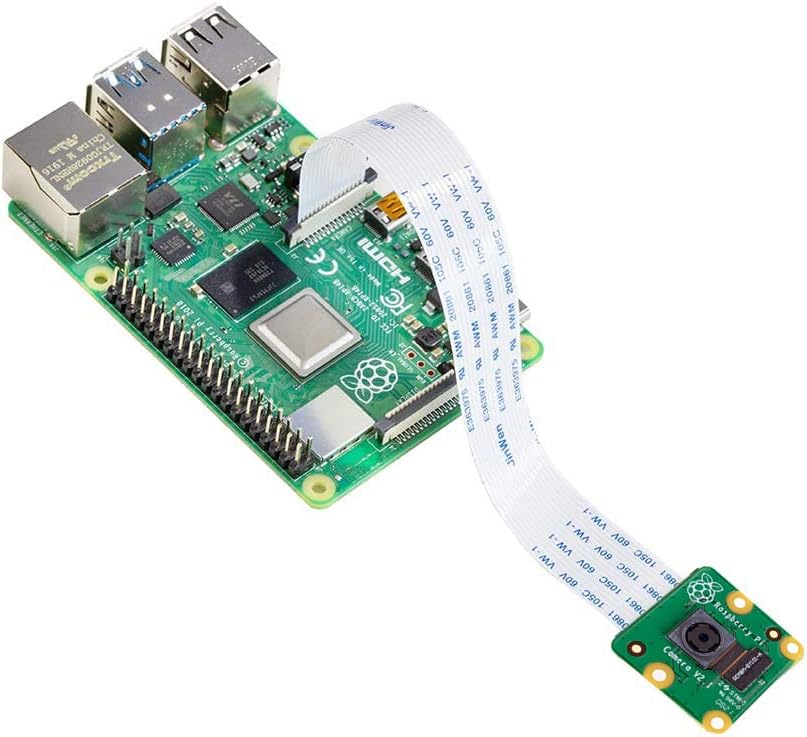

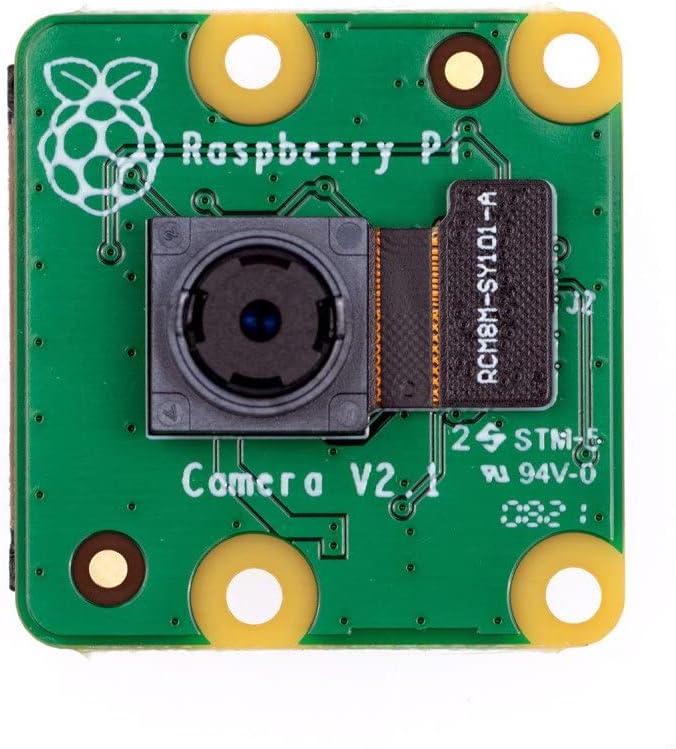

The official Raspberry Pi Camera Module V2.1 is an 8-megapixel camera board that connects straight to the CSI port on a Raspberry Pi. It captures 3280 × 2464 still images and records video at 1080p30, 720p60 or 640 × 480p90.

Everything needed to drive it is already in current versions of Raspberry Pi OS, so there is no driver hunt — connect the ribbon cable, enable the camera and start capturing. The board is tiny and light, which is what makes it so useful for 3D-printer monitoring with OctoPrint, home security, dashcams and machine-vision projects.

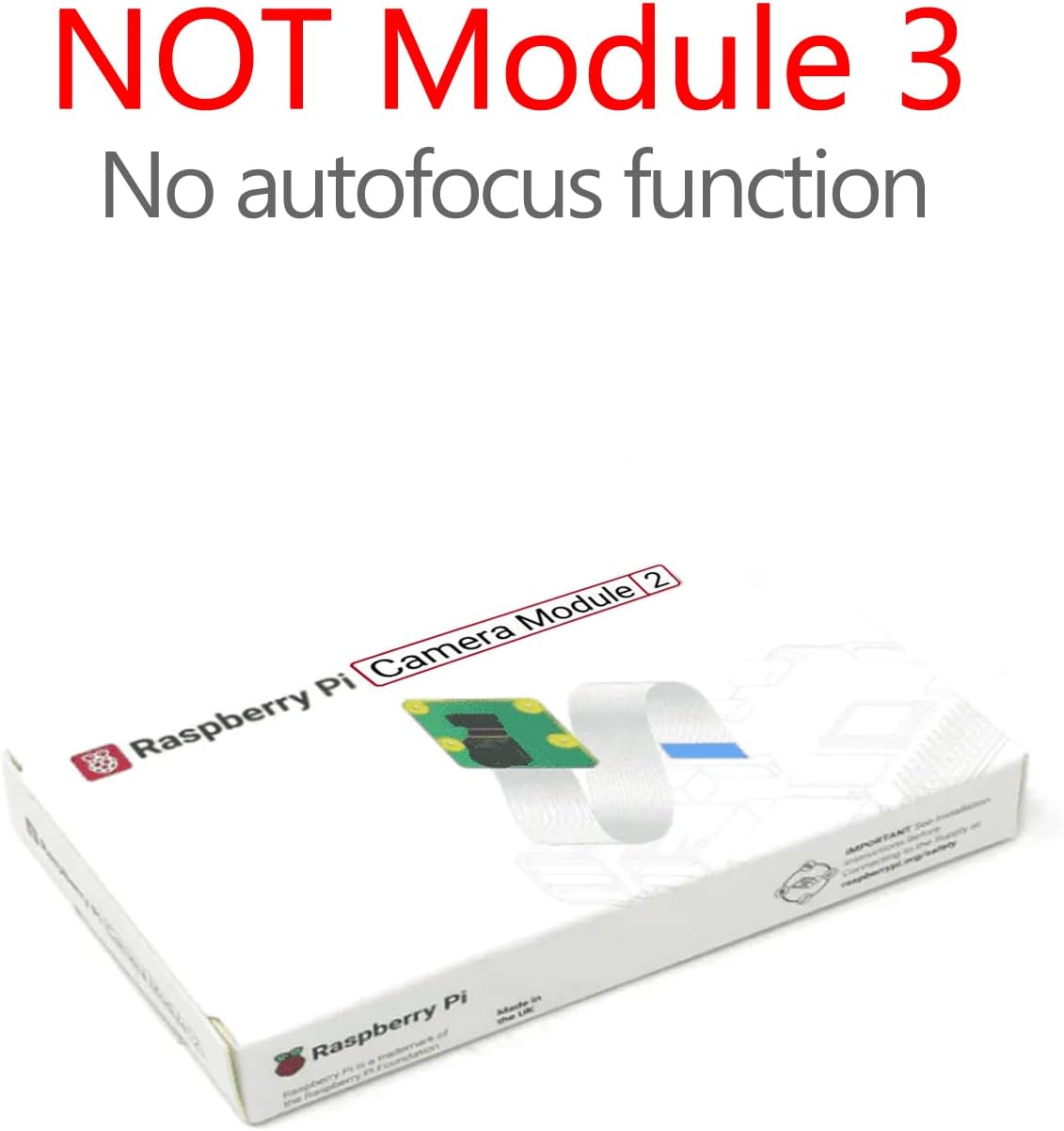

Please note: this is the Camera Module V2.1, not the newer Camera Module 3.

Key Features

• 8-megapixel official camera — Genuine Raspberry Pi Camera Module V2.1
• High-resolution stills — 3280 × 2464 pixels
• Flexible video modes — 1080p30, 720p60 and 640 × 480p90

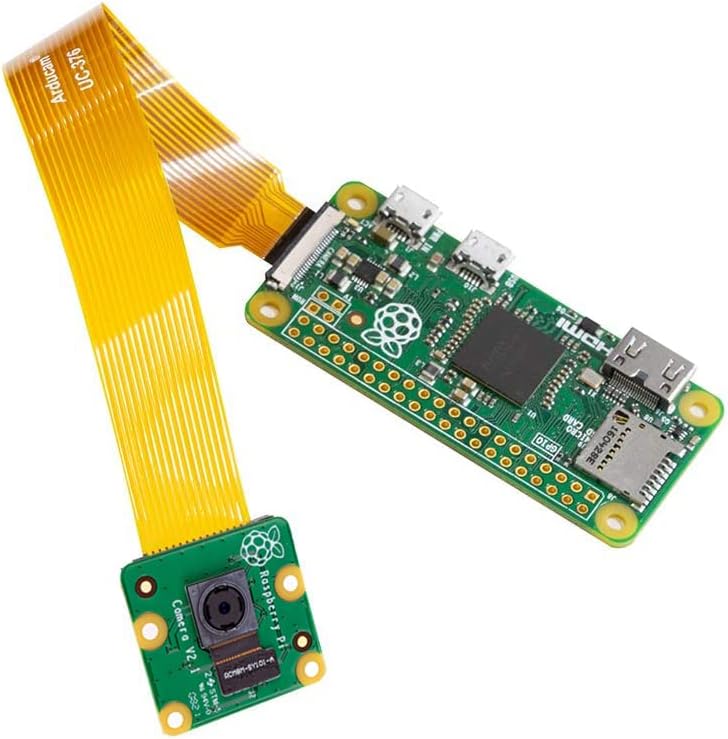

• Pi Zero cable included — Ships with the narrower ribbon cable Pi Zero and Zero W need
• Software ready — Fully supported in current Raspberry Pi OS releases
• Wide compatibility — Works with Raspberry Pi 1, 2, 3 B+, 4 Model B and Pi Zero

Specifications

Typical Uses

• OctoPrint 3D-printer monitoring
• Home security and surveillance
• Dashcam and time-lapse recording
• Machine-vision and computer-vision projects

What's in the Box

• 1 × official Raspberry Pi Camera Module V2.1
• 1 × 15 cm standard ribbon cable
• 1 × 30 cm Pi Zero ribbon cable
