Raspberry Pi Camera Module 5MP with OV5647 Sensor
- 5 MP OV5647 sensor with a fixed-focus lens
- 2592 x 1944 stills and 1080p video
- Only 25 x 24 x 9 mm and just over 3 g; Pi Zero ribbon cable included
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | Y3-5AVS-T77Q |
|---|---|
| Category | Accessories |
| Unit price | $16.99 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
This 5-megapixel camera module uses the well-proven OV5647 sensor with a fixed-focus lens, and plugs directly into the CSI port of a Raspberry Pi. It captures 2592 × 1944 still images and records 1080p video.

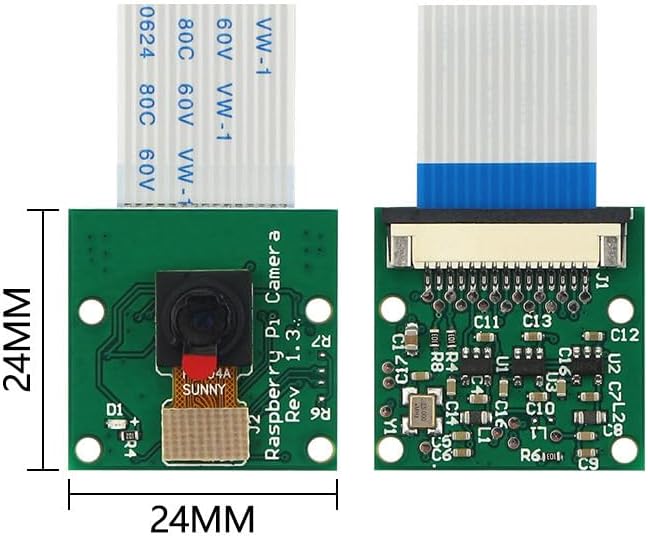

The board measures roughly 25 × 24 × 9 mm and weighs just over 3 g, which makes it ideal for anything that moves or has to fit in a tight enclosure. This is the current version 1.3, plug-and-play with current Raspberry Pi OS releases.

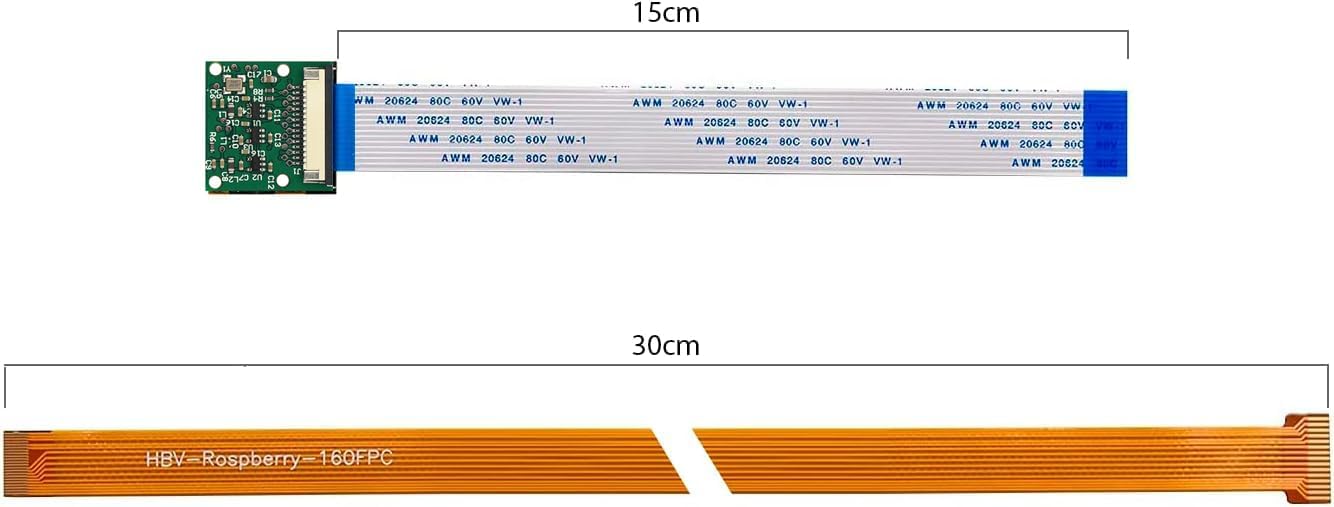

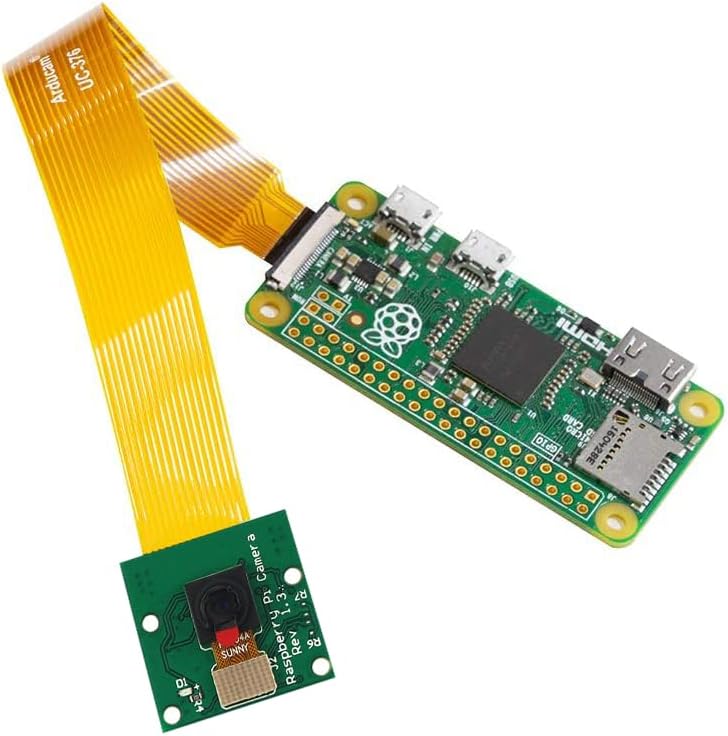

A 30 cm ribbon cable for Pi Zero and Zero W is included, so the narrower Zero connector is covered out of the box.
Key Features
- 5-megapixel OV5647 sensor — Native 5 MP resolution with a fixed-focus lens on board
- Still images at 2592 × 1944 — Plenty of detail for monitoring and capture work
- 1080p video — Smooth recording for surveillance, dashcam and time-lapse projects
- Very small and light — About 25 × 24 × 9 mm and just over 3 g, ideal for mobile builds
- Pi Zero cable included — 30 cm ribbon cable for Pi Zero and Zero W
- Plug and play — Version 1.3, supported by current Raspberry Pi OS releases
Specifications
| Sensor | OmniVision OV5647 |
|---|---|
| Resolution | 5 megapixels |
| Still images | 2592 × 1944 pixels |
| Video | 1080p |
| Lens | Fixed focus |
| Version | 1.3 |
| Interface | CSI ribbon connector |
| Cable | 30 cm Pi Zero ribbon cable included |
| Board size | Approximately 25 × 24 × 9 mm |
| Weight | Just over 3 g |
| Compatible with | Raspberry Pi Model A/B/B+, Pi 2, Pi 3, Pi 3B+, Pi 4B, Pi Zero W |
Typical Uses
- OctoPrint 3D-printer monitoring
- Home security and surveillance
- Dashcam and time-lapse recording
- Machine-vision and computer-vision projects
What's in the Box
- 1 × 5 MP OV5647 camera module
- 1 × 30 cm ribbon cable for Pi Zero / Zero W
