Official 27W USB-C PD Power Supply for Raspberry Pi 5, Black

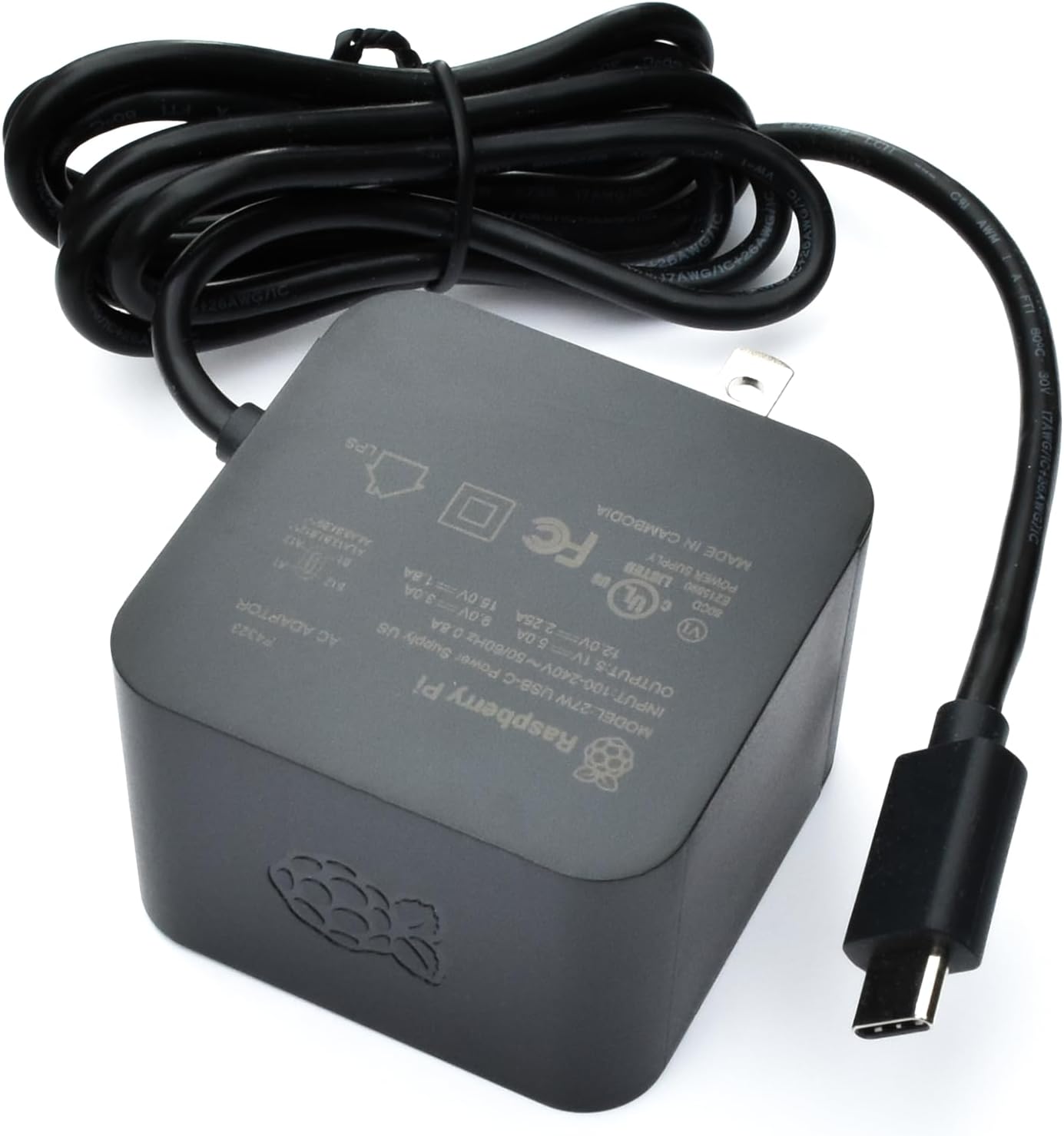

- Official 27 W USB-C PD supply delivering 5.1 V / 5 A to the Raspberry Pi 5
- Raises the Pi 5 USB port budget to a nominal 1.6 A
- Micro-HDMI to HDMI cable included; also a 9 V / 12 V / 15 V PD charger
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | IOT-031-02 |
|---|---|
| Category | Accessories |
| Unit price | $34.99 |
| Availability | Out of stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview
The Raspberry Pi 5 asks more of its power supply than any board before it. This official 27 W USB-C Power Delivery supply answers that properly, delivering up to 5.1 V at 5 A so the board can run demanding peripherals without dipping into under-voltage.
There is a concrete benefit to using it: when the Pi 5 detects a USB-C PD supply of this capability, it automatically raises the total current available across its four USB ports to a nominal 1.6 A. With a smaller adapter the Pi caps that budget, and bus-powered drives are the first thing to suffer.
It is a capable general-purpose PD charger too, supplying 3 A at 9 V, 2.25 A at 12 V and 1.8 A at 15 V to other PD devices. This listing also includes a micro-HDMI to HDMI cable for the Pi 5's display output.
Key Features
- High power delivery — Up to 5.1 V / 5 A for the Raspberry Pi 5 and its peripherals
- Raises the Pi 5 USB budget — Total current across the four USB ports increases to a nominal 1.6 A when this supply is detected
- Useful beyond the Pi — 3 A @ 9 V, 2.25 A @ 12 V and 1.8 A @ 15 V for other USB-C PD devices
- Micro-HDMI cable included — Connect the Pi 5 straight to a monitor or TV
- Safe worldwide — 100–240 V AC input with a durable 1.2 m 18 AWG cable
- Compact — Light enough to travel with the board
Specifications
| Model | Official 27 W USB-C PD power supply |
|---|---|
| Input | 100–240 V AC |
| Primary output | 5.1 V / 5 A |
| PD profiles | 9 V / 3 A, 12 V / 2.25 A, 15 V / 1.8 A |
| Connector | USB Type-C |
| Cable | 1.2 m, 18 AWG |
| Plug type | US / Canada |
| Colour | Black |
| Compatible with | Raspberry Pi 5 and USB-C PD devices |
What's in the Box

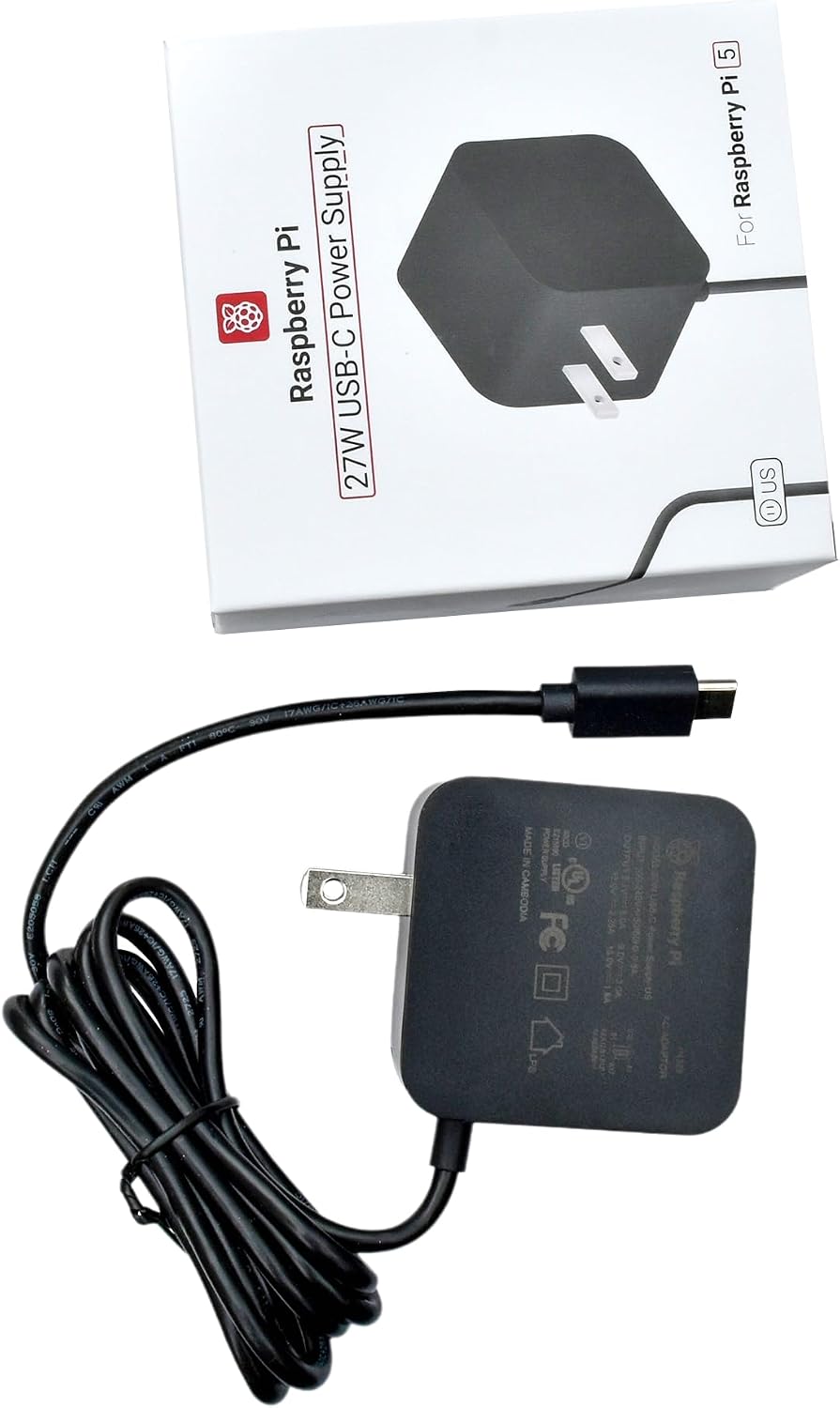

- 1 × official 27 W USB-C PD power supply, black
- 1 × micro-HDMI to HDMI cable
Where you'll put it to work.
Stable, correctly rated power is the difference between a project that works on the bench and one that works every day.
Powering boards
Clean, rated supply for single-board computers and microcontrollers — fewer brown-outs and resets.
Portable projects
Run robots, sensors and demos away from a USB port.
Bench testing
A known-good supply for isolating power problems while you debug.
Always-on installs
Kiosks, home servers and displays that need to run unattended.
