9V 1A Power Adapter for Arduino, 5.5 x 2.1 mm Plug
- 9 V / 1 A regulated adapter with a 5.5 x 2.1 mm centre-positive plug
- For Arduino UNO R3, Mega 2560, Due and Leonardo, and Schwinn elliptical machines
- 100-240 V input, 150 cm cord, UL and FCC listed
All prices in CAD. GST/HST/PST is added at checkout based on your province.
At a glance
| SKU | KIDS-016-1 |
|---|---|
| Category | Accessories |
| Unit price | $15.99 |
| Availability | 51 in stock |
| Shipping | Calculated at checkout |
| Ships from | Calgary, AB, Canada |
| Warranty | 1 year, repair or replacement |
About this product
Overview

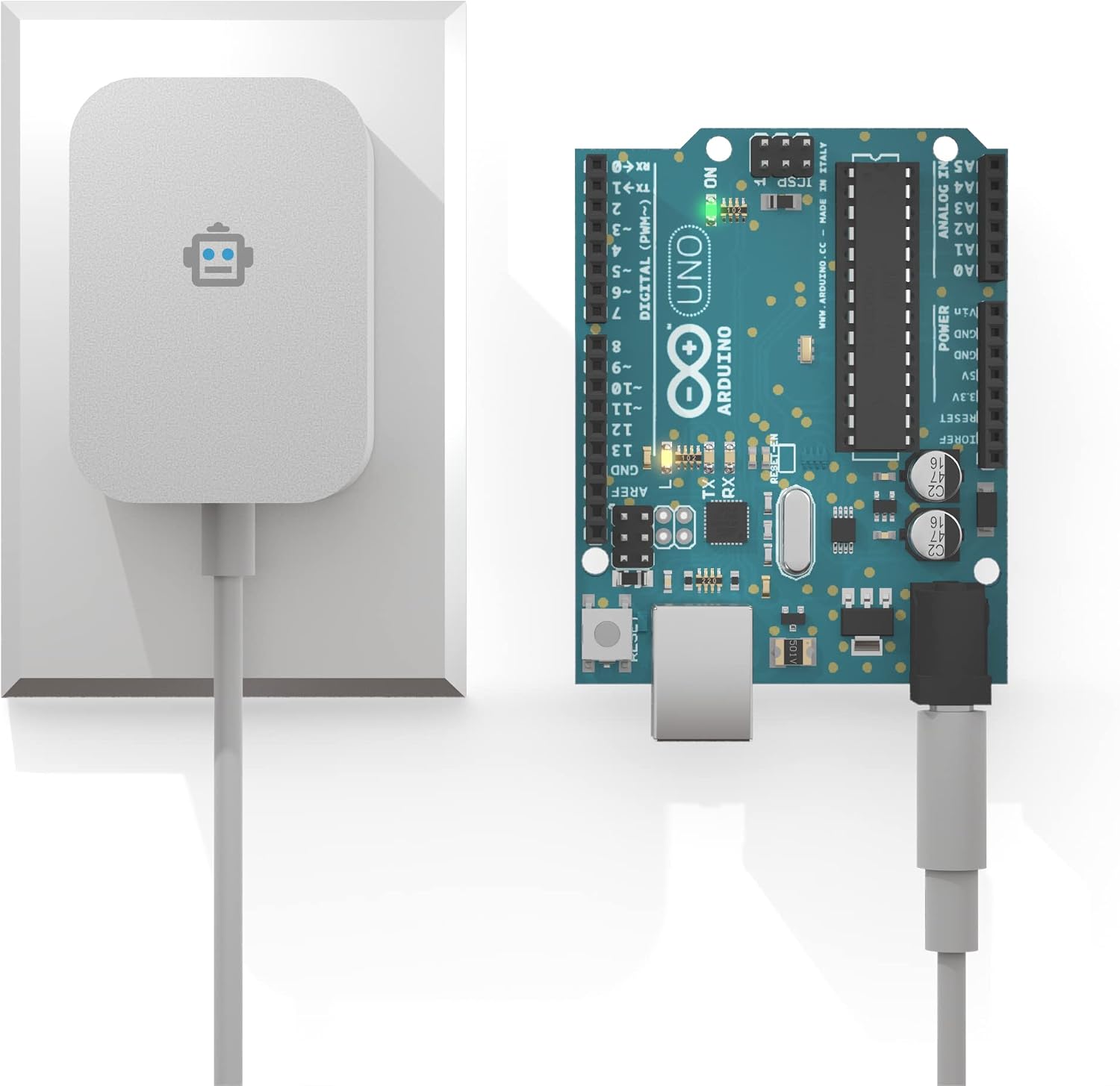

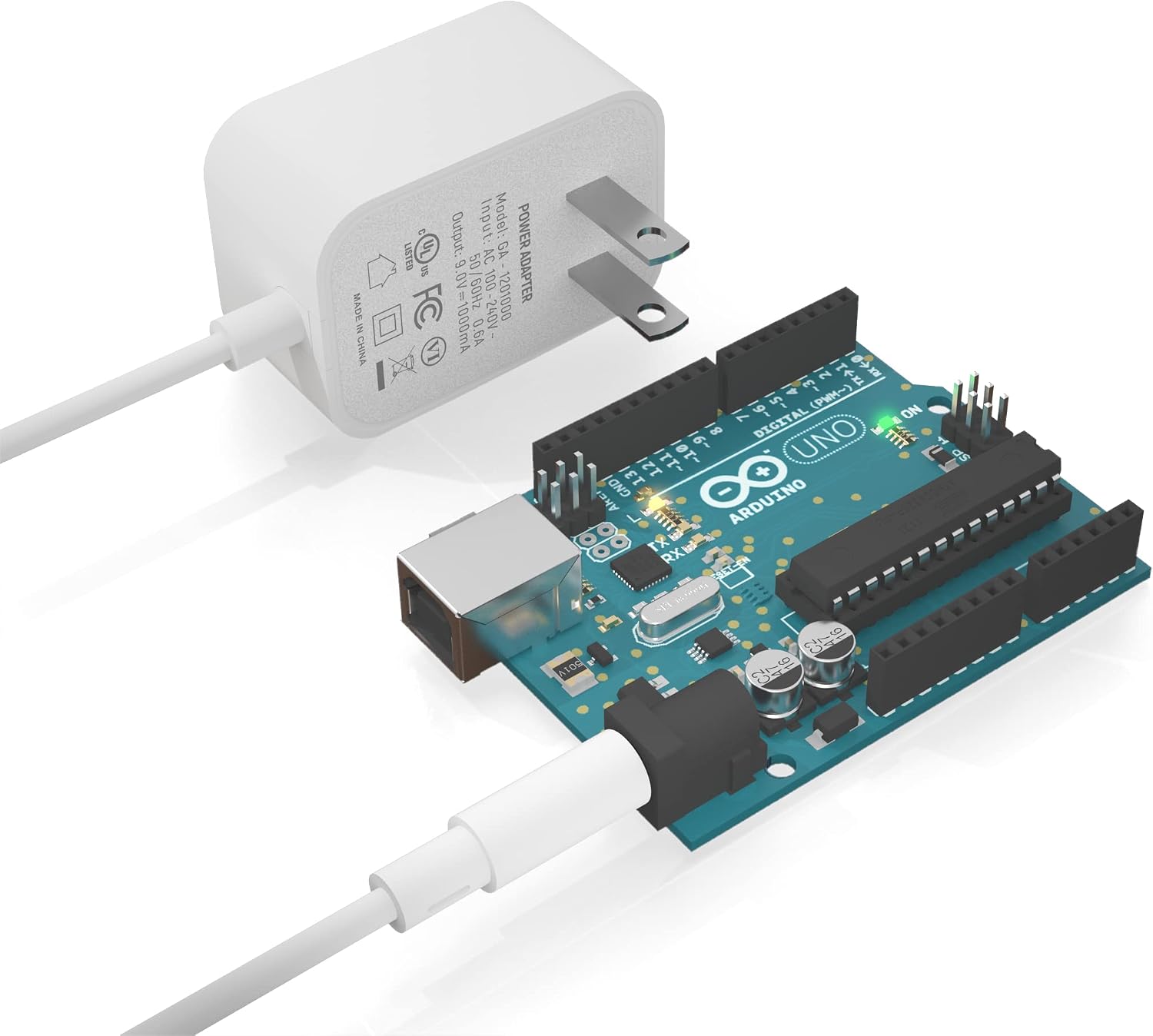

This 9 V 1 A power adapter is the standard way to run an Arduino board independently of a computer. It plugs into the barrel jack on an UNO R3, Mega 2560, Due, Zero or Leonardo and feeds the on-board regulator through a 5.5 × 2.1 mm centre-positive plug.
It also fits a long list of Schwinn elliptical exercise machines (A10, A15, A20, A25, A40, 101, 102, 103, 220, 230, 240, 420 and 430), which makes it a common replacement adapter well beyond the workbench.
A 100–240 V input range means it works on any mains standard with a suitable plug adapter, and the 150 cm (4.9 ft) cord gives real freedom in where the project sits.
Key Features
- Wide compatibility — Any device needing 9 V / 1000 mA, including Arduino UNO R3, Mega 2560, Due and Leonardo, plus Schwinn elliptical models
- Universal input — 100–240 V AC for use across different mains standards
- Generous cord length — 150 cm (4.9 ft) for flexible placement

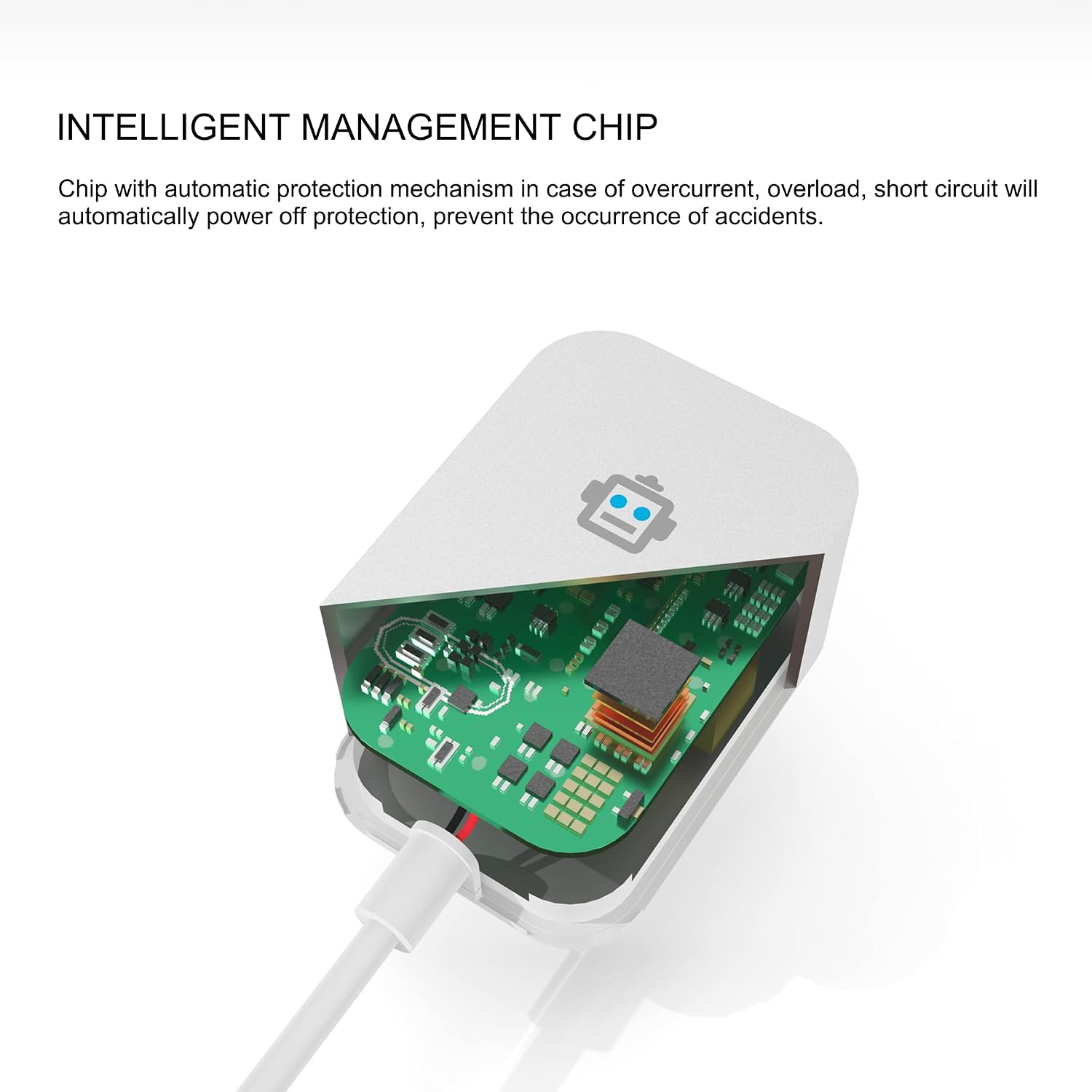

- Protected — Automatic overcurrent, overload and short-circuit protection
- Quiet — Operates below 25 dB, with no audible coil whine
- Certified — FCC and UL listed for safety compliance
Specifications
| Brand | IoTCrazy |
|---|---|
| Input | 100–240 V AC |
| Output | 9 V DC, 1 A (1000 mA) |

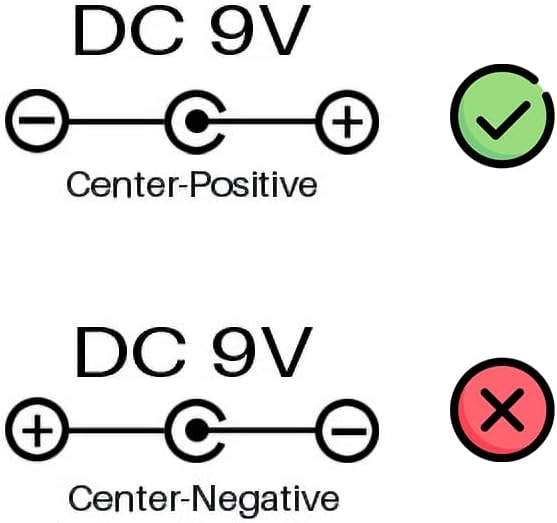

| Connector | 5.5 × 2.1 mm barrel, centre positive |
| Cord length | 150 cm / 4.9 ft |
| Protection | Overcurrent, overload and short circuit |
| Noise level | Below 25 dB |
| Certification | FCC, UL listed |
| Plug type | US / North America |
What's in the Box
- 1 × 9 V 1 A power supply adapter with 5.5 × 2.1 mm barrel plug
Where you'll put it to work.
Stable, correctly rated power is the difference between a project that works on the bench and one that works every day.
Powering boards
Clean, rated supply for single-board computers and microcontrollers — fewer brown-outs and resets.
Portable projects
Run robots, sensors and demos away from a USB port.
Bench testing
A known-good supply for isolating power problems while you debug.
Always-on installs
Kiosks, home servers and displays that need to run unattended.
